Product Details
Place of Origin: China
Brand Name: Orginal
Model Number: DM-FJ2900
Payment & Shipping Terms
Color: |
Green |
Voltage: |
380V,50HZ |
Guarantee: |
Including After Sales Services |
Speed: |
180-220meter/min |
Finished Dia.: |
90-300mm |
Color: |
Green |
Voltage: |
380V,50HZ |
Guarantee: |
Including After Sales Services |
Speed: |
180-220meter/min |
Finished Dia.: |
90-300mm |

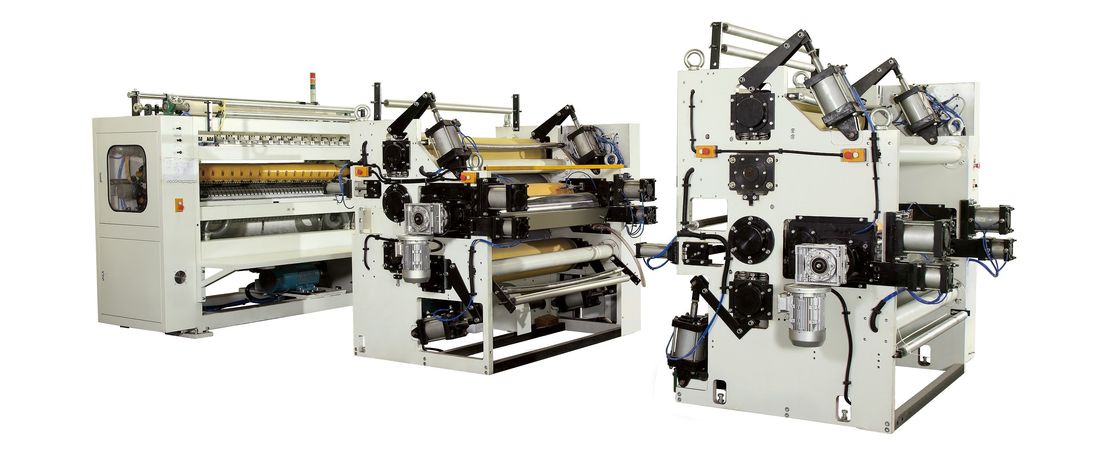

Toilet Paper Kitchen Towel Glue Laminated System Rewinding Machine with embossing unit good using economical price
1 .Raw material:13-25gsm wood pulp paper,straw pulp paper
2. Width of jumbo roll:2560mm-3000mm
3. Outer Dia. of jumbo roll:1500mm; Inner Dia. of jumbo roll core:76.2mm
4. Parameter setting:Touch screen(SIEMENS)
5.Programmable controller: SIEMENS PLC (Auto-prompt adding core; auto-put core; auto-control the finished products’ diameter; auto-trim, spray glue and seal,automatic roll pushing)
6.Braking:Pneumatic and electronic control
7.Machine speed: 0-250m/min (controlled by frequency converter,INVT)
8.Production speed:200m/min(with embossing),220m/min(without embossing)
9.Finished products’ Dia.:90-300mm (Tightness can be adjustable)
10.Sheet of finished product control:Increase gradually till to reach the set sheets.
11.Perforating size:110mm 12.Perforator:4 pieces of anvil blades (pneumatic shifting)
13.Core Dia. :30-50mm 14.Automatic loose core:Cored products can be produced
15.Main transmission: separating motors driving
16.Mainframe structure:Wallboard type
17.Embossing unit for toilet roll: single embossing (steel to rubber,separating motor driving,pattern designed by customer)
18.Lamination unit for kitchen towel:1 set colorful glue lamination unit(glue for nested,pattern designed by customer)
19.Control voltage:DC24v
20.Main machine power: 7.5kw ,380V,50Hz (frequency converter control,INVT); Lamination unit driving motor power: 18Kw,380V,50Hz;Embossing unit driving motor power:4Kw,380V,50Hz
21.Backstand: 2 stands (pneumatic loader,separating motor driving,left/right adjust:motor drives)
22.Pressure of pneumatic system:0.8Mpa(user supplied)
23.Overall size: 10.6×3.3×1.8m(L×W×H); Machine weight: about 11.4T
