V fold facial tissue cleaning face machine facial folding part is independent motor driving

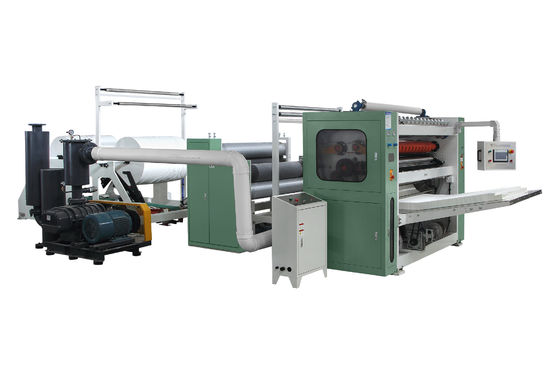

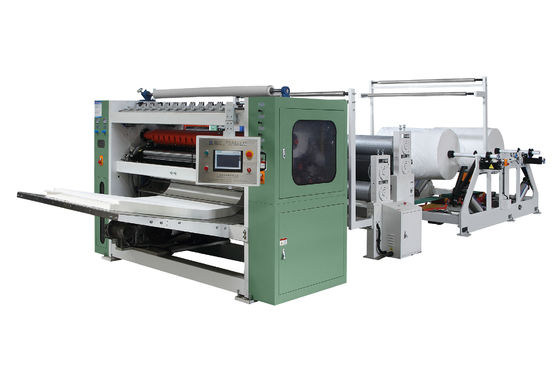

CJ180/190/200 Facial Tissue Folding Machine
| MODEL | 5T | 6T | 7T | 9T | 10T | 14T |
| Max. Width of jumbo roll | 1050mm | 1260mm | 1500mm | 1900mm | 2000mm | 2850mm |
| Slitting knife | 5sets in back and front | 6sets in back and front | 7sets in back and front | 9sets in back and front | 10sets in back and front | 14sets in back and front |
| Vacuum pump | 15kw | 18.5kw | 18.5kw | 22kw | 22kw | 50kw |
| Main driving motor powe | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
| Machine size | 6×2.3×1.9m | 6×2.5×1.9m | 6×2.8×1.9m | 6×3.3×1.9m | 6×3.5×1.9m | 6×4×1.9m |
| Machine weight | 5500kg | 6500kg | 7500kg | 8300kg | 8500kg | 9500kg |
| Machine speed | 500-1000 sheet/min/lane | |||||
| Max.diameter of jumbo roll | Ф1200mm(other sizes can be ordered) | |||||
| Inner diameter of jumbo roll | Ф76.2mm(other sizes can be ordered) | |||||
| Bankstand | 2-6 jumbo rolls (should be ordered) | |||||
| Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||
| Edge embossing unit | Air bag type,bearing pattern(should be ordered) | |||||
| Air pressure | 0.8Mpa(user supplied) | |||||
