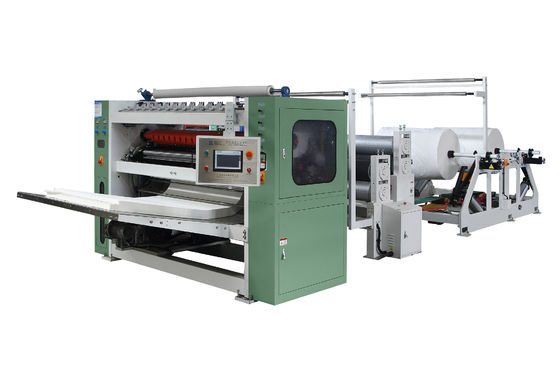

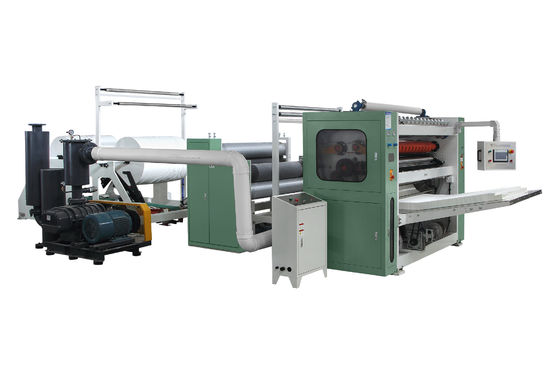

1.5m Diameter Tissue Paper Production Line V Fold Facial Tissue Cleaing Paper Machine

Product Details

Place of Origin: CHINA

Brand Name: ORGINAL

Model Number: DM-HC200-1500

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: Negotiable

Packaging Details: wooden pallet,20 feet container can load 1set

Delivery Time: 40 days

Supply Ability: 5SETS PER MONTH

Get Best Price
Highlight:

1.5m diameter Tissue Paper Production Line

,

V Fold Tissue Paper Production Line

Speed:
110meters/min
Driving:
Separating Motor Driving
Embossing Unit:
Steel To Steel Embossing Unit
Backstand:
1.5meter Diameter Backstand Unit
Guarantee:
12 Months
Raw Material:
13-15gsm/ply , 1-3 Plys
Speed:
110meters/min
Driving:
Separating Motor Driving
Embossing Unit:
Steel To Steel Embossing Unit
Backstand:
1.5meter Diameter Backstand Unit
Guarantee:
12 Months
Raw Material:
13-15gsm/ply , 1-3 Plys
1.5m Diameter Tissue Paper Production Line V Fold Facial Tissue Cleaing Paper Machine

Economical V fold facial tissue cleaing paper machine with automatic transfer unit

DM-HC200-1500 Economical V fold facial tissue cleaing paper machine with automatic transfer unit



MODEL 5T 6T 7T 9T 10T 14T
Max. Width of jumbo roll 1050mm 1260mm 1500mm 1900mm 2000mm 2850mm
Slitting knife 5sets in back and front 6sets in back and front 7sets in back and front 9sets in back and front 10sets in back and front 14sets in back and front
Vacuum pump 15kw 18.5kw 18.5kw 22kw 22kw 50kw
Main driving motor powe 5.5kw 5.5kw 7.5kw 7.5kw 11kw 15kw
Machine size 6×2.3×1.9m 6×2.5×1.9m 6×2.8×1.9m 6×3.3×1.9m 6×3.5×1.9m 6×4×1.9m
Machine weight 5500kg 6500kg 7500kg 8300kg 8500kg 9500kg
Machine speed 500-1000 sheet/min/lane
Max.diameter of jumbo roll Ф1500mm(other sizes can be ordered)
Inner diameter of jumbo roll Ф76.2mm(other sizes can be ordered)
Bankstand 2-6 jumbo rolls (should be ordered)
Embossing unit Steel to rubber,steel to paper,steel to steel(should be ordered)
Edge embossing unit Air bag type,bearing pattern(should be ordered)
Air pressure 0.8Mpa(user supplied)
