Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit

I'm Online Chat Now
Their machines are so strong and so realiable . The quality is so good and they provide me very good after sales services . They help me design 2 factories layout for machines installation . I am really appreciated . I will recommend them for tissue paper converting machines .

—— Mohammad

This mutual cooperation last for about 6 years,and must admit the service they provide is aboved expected. Our cooperation will last for many years.

—— Rose

The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit

Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit
Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit

Large Image :  Mini Hankey Double Lanes Pocket Tissue Folding Machine With Auto Transfer Unit Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: CM-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 60days
Supply Ability: 2sets per month
Detailed Product Description
Lane: 2 Lanes Color: Yellow
Speed: 900-1000PCS/min Separating: Automatic
Parameters Setting: Touch Screen Automatic Type: Full Automatic
Voltage: 380V,50Hz Color Printing: 0-2 Colors
Guaranteee: 1 Year Transfer: Auto Transfer Unit
Packing: Single Packing And Bundel Packing
Highlight:

Double Lanes Pocket Tissue Folding Machine

,

Auto Transfer Pocket Tissue Folding Machine

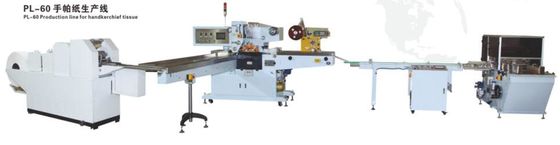

Fully Automatic Mini Hankey Double Lanes Pocket Tissue Folding Machine with auto transfer unit





CM-1000 Automatic pocket tissue folding machine





Features:

  • Automatic counting
  • Automatic separating
  • Touch screen parameters setting
  • Connect the packing machine easily
  • High speed:900-1000pcs/min
Model CM-1000
Max.Jumbo roll width 400-420mm
Max.jumbo roll diameter 1200mm
Finished product size (50-54)*(72/102)mm should be chosen
Embossing unit Steel to rubber/steel to paper/steel to steel(option)
Vacuum pump 7.5Kw,380V,50Hz
Counting Automatic counting,6/8/10/12pcs,setting on touch screen
Parameter setting Touch screen
Main power 3Kw,380V,50Hz
Working speed 900-1000pcs/min
Air pressure 0.8Mpa
Machine size 2680*1050*1550mm

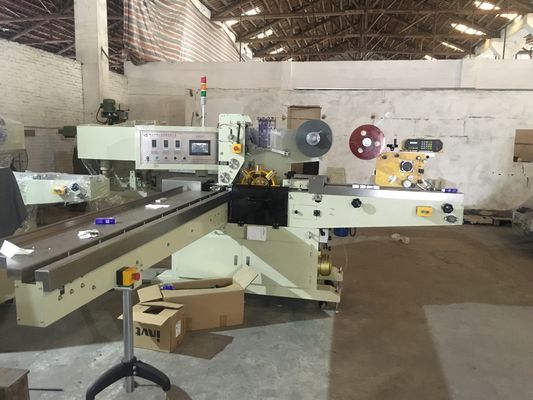

XB202 Automatic Pocket Tissue Packing Machine

Features:

  • high speed:100bags/min
  • Good quality:cam can running at least 5 years
  • Stable running with SIEMENS PLC control
  • Speed adjust:MITSUBISHI frequency converter
  •

5. Tearing knife type:mechanical type

Model XB202
Packing size (70-110)*(50-55)*(20-28)mm(L*W*H)
Working speed 60-105bags/min
Machine power 4.68Kw,380V,50Hz
Air pressure 0.8Mpa
Packing film material CPP,PE,OPP
PLC control SIEMENS
Frequency converter MITSUBISHI
Parameter setting Touch screen(Weinview)
Machine size 2840*2650*1720mm(L*W*H)
Machine weight About 1500Kg

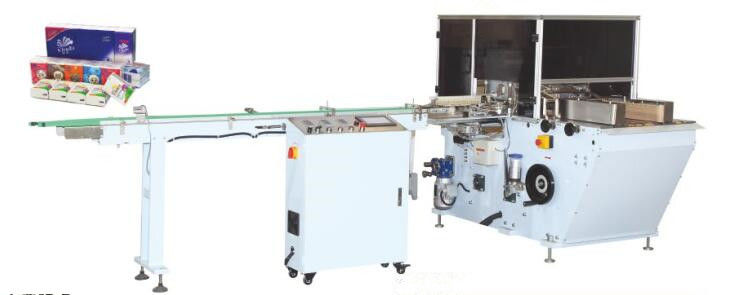

TB380A Automatic Bundle Wrapping Machine

Features:

1. high speed:12bags/min

2. Good quality:cam can running at least 5 years

3. Stable running with SIEMENS PLC control

4. Tearing knife type:pneumatic type

5. 2ply,3ply can be chosen

Model TB380A
Packing size (150-300)*(70-150)*(42-84)mm(L*W*H)
Working speed 10-15bags/min
Power 3.5Kw,380V,50Hz
Air pressure 0.8Mpa
Parameter setting Touch screen(Weinview)
PLC control SIEMENS
Packing film material CPP,PE,OPP
Machine size 2500*3200*1550mm(L*W*H)
Machine weight About 1200Kg

Q1: How is your machine quality ?

A1: Our team has over 20 years’ experience in manufacturing tissue machine. We make heavy investment in CNC processing to improve parts’ quality.

Our strict quality managing system has been pushing roundly from parts production to machine assemble. .


Q2: Are you a manufacture?

A2: Yes, We are manufacture. We have a converting machine plant and a packing machine plant. We manufacture full production line machines from converting to packaging.



Q3: Are you a real supplier?

A3: We are a qualified supplier which has been field certified by Alibaba. You can also apply for trading guaranteed from Alibaba



Q4: How to check the quality of the machines?

A4: We will send you machine videos. We can also arrange on-line video meeting to see and check the machines before delivery.



Q5: How is the after-sale service?

A5: We offer one year warranty for all of our machines. We have cooperation technicians in USA, Middle East, South Africa. Our team will offer on-lines services 7 days a week.
