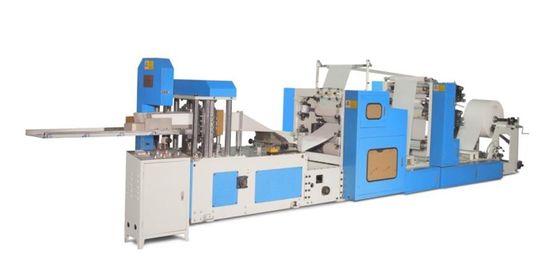

1/4 Folded Napkin Machine 280meters/min high speed production line with automatic transfer unit for optional part

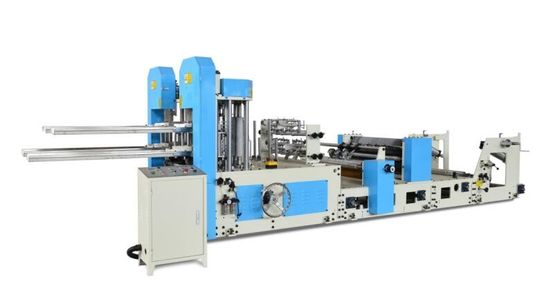

DM-CJ200-400 Medium Speed High Quality Napkin Tissue Folding Machine
1/4 Folded Paper Medium Speed 200meter/min Napkin Machine Pneumatic Feeding Type
Features:
1. Frequency converter control
2. Automatic electrical counting
3. Pneumatic loading
4. Automatic stop while machine blocked
5.Speed : working speed is 200meter/min
| MODEL | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Max.jumbo roll width(mm) | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Folded size(mm) | 95*95 | 100*100 | 115*115 | 120*120 | 135*135 | 150*150 | 165*165 | 200*200 |
| Unfolded size(mm) | 190*190 | 200*200 | 230*230 | 240*240 | 270*270 | 300*300 | 330*330 | 400*400 |
| Max.jumbo roll diameter | 1200mm(other size should be ordered) | |||||||
| Jumbo roll core inner diameter | 76.2mm | |||||||
| Backstand | Fix type,pneumatic type(should be order) | |||||||
| Folding style | 1/4 folded | |||||||
| Color printing | 0-2 colors(should be ordered) | |||||||
| Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||||
| Counting | Electrical counter | |||||||
| Speed control | Frequency converter | |||||||
| Power | 2.1-4.1Kw,380V,50Hz | |||||||
| Machine weight | About 700-1500Kg | |||||||
Q1: How is your machine quality ?
A1: Our team has over 20 years’ experience in manufacturing tissue machine. We make heavy investment in CNC processing to improve parts’ quality.
Our strict quality managing system has been pushing roundly from parts production to machine assemble. .
Q2: Are you a manufacture?
A2: Yes, We are manufacture. We have a converting machine plant and a packing machine plant. We manufacture full production line machines from converting to packaging.
