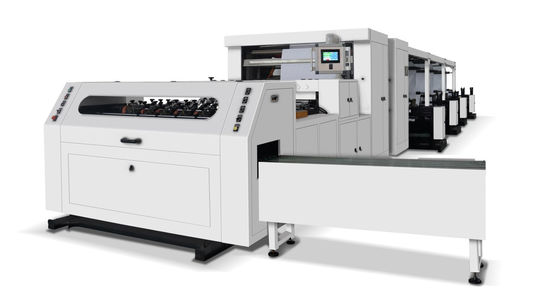

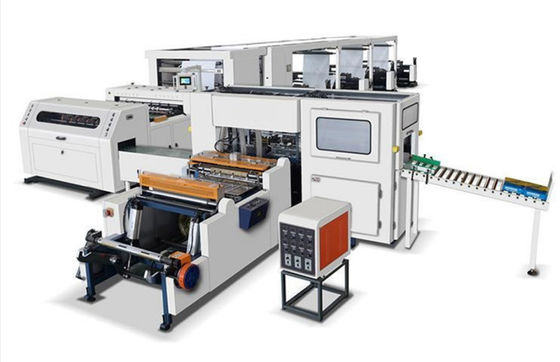

A3 / A4 Copy Paper Slitting Machine With Precise Cutting Size

A3 / A4 Copy Paper Slitting Machine With Precise Cutting Size
A3 / A4 Copy Paper Slitting Machine With Precise Cutting Size
video play

Large Image :  A3 / A4 Copy Paper Slitting Machine With Precise Cutting Size Get Best Price

Product Details:
Place of Origin: China
Brand Name: Orginal
Model Number: A4-4rolls copy paper slitting machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Payment Terms: T/T
Detailed Product Description
Max Width Mother Roll: 1100MM Max Diameter Mother Roll: 1400MM
Cutting Speed: 50-150times/min Cutting Size: A3/A4
Color: White Guarantee: One Year
Highlight:

A4 Copy Paper Slitting Machine

,

A3 Copy Paper Slitting Machine

,

Precise Cutting Copy Paper Slitting Machine

Paper Width : Max width 1100 mm

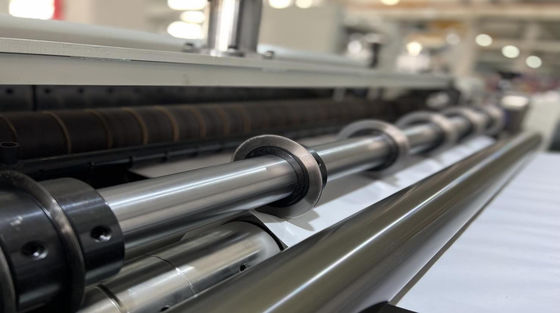

Cutting numbers : 5 cutting-A4 210mm (width) : 6 sets slitting knives
Paper roll’s diameter : Max.Ф1400mm
Paper core’s diameter : 3” (76.2mm)or 6 inches
Mother roll weight : Max. 1200kg
Packing Paper grade : High-grade copy paper; High-grade office paper;
Paper weight : 60-100g/m2
Sheet length : 297mm (specially design for A4 paper, the cutting length is 297mm)
Ream amount : 500 sheets Max. Height: 45-55mm
Production speed : Max 0-45m/min (depends on different paper quality)
Max. Numbers of cutting : Max150 cuts/min
Output of the ream : Max 6 reams/min
Load of cutting : 100g/m2 (1×100g/m2)
Cutting accuracy : ±0.2mm
Cutting condition : No variation of the speed, no break, cut all the paper at one time and need the eligible paper.
Main power supply : 2*380V /50HZ
Voltage : 220V AC /24V DC
Power : 18 KW
Power consumption : 5-6KW/H
Air consumption : 200NL/min
Air pressure : 6-8 bar
Edge cutting : 5~10mm*2
Safety standard : Design according the safety standard of China
