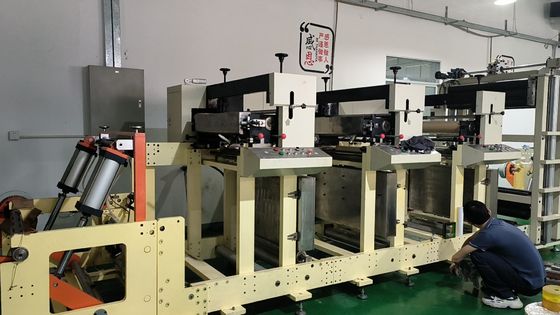

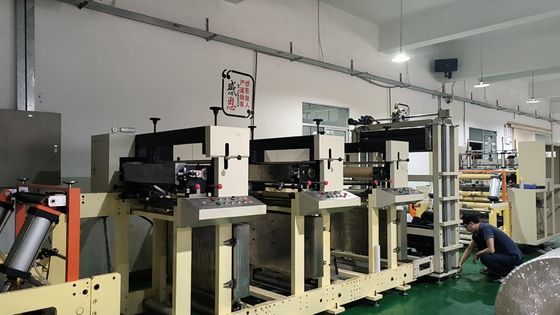

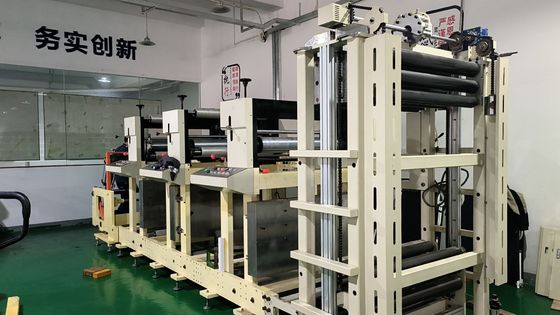

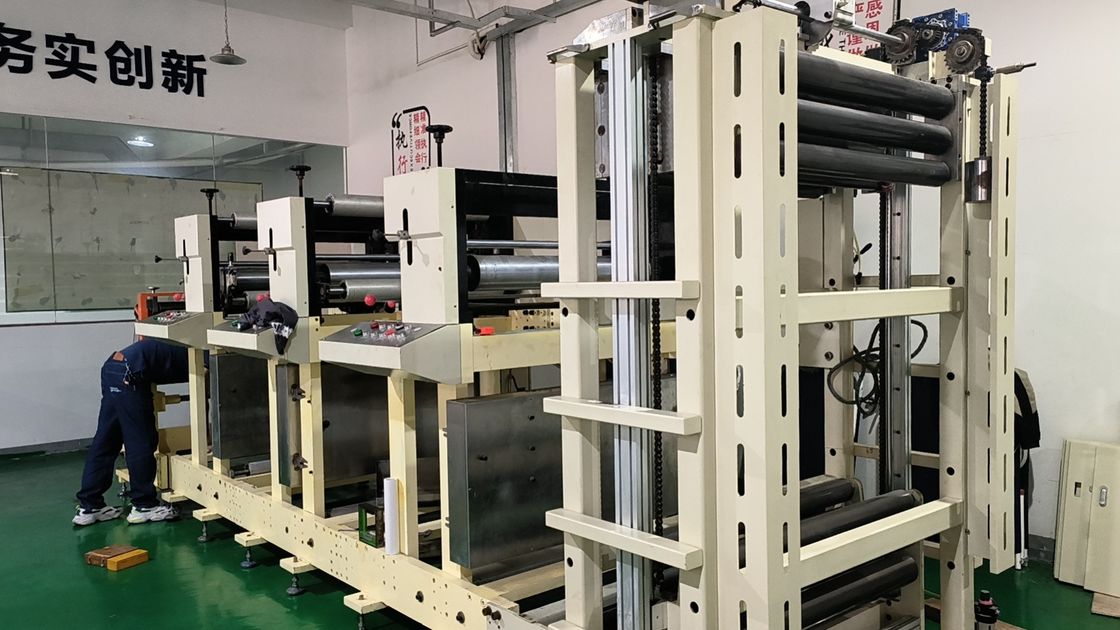

Thermal Paper Flexographic Printing Automatic Slitting Production Line

Flexographic printing machine technical parameters

1. Main technical parameters:

1. Maximum paper roll width 800 mm ( printing width );

2. The maximum unwinding diameter is 1000mm;

Maximum winding diameter 800mm ;

3. Machine speed 180m/min;

4. Printing and cutting speed 100 -150 m/min;

5 supporting power : Main motor 4kw ;

Total transmission power: 4.5 kw;

Installed power of drying section : 9 kw; (3 groups × 3kw )

Power supply : 3 80V ; 5 0 Hz/60Hz; (prepared by customer )

Air source : 0.4-0.7MPa (prepared by customer )

6 Overall dimensions : 6300×1800×2200mm;

7Equipment weight: 5800 kg.

Main roller specifications of three- color flexo printing machine :

Anilox roller : Φ129.5×820mm

Impression roller : Φ129×880mm

Printing roller : circumference 15/14 inches × 884mm ( the roller attached to the printing plate )

Guide roller : Φ100×876mm

Installed capacity : 1 3.5 kw ( 4.5 motor + 3X3 heating )

Rated current : 18A ( 2X4.5+9 ) ( the name brand says 27A , which is too large )
