High Speed Tissue Paper Production Pocket Tissue Hankerchief Production Line High Efficient

High Speed Tissue Paper Production Pocket Tissue Hankerchief Production Line High Efficient

Large Image :  High Speed Tissue Paper Production Pocket Tissue Hankerchief Production Line High Efficient Get Best Price

Product Details:
Brand Name: ORIGIN
Model Number: DM-DX- 100D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Detailed Product Description
Grammage: 13-40g/m2 Steam Pressure: 0.2-0.8MPa
Design Speed: 600-1000PIECES/MIN Material: Wood Pulp, Recycled Paper, Etc.
Dimension: According To The Capacity Guarantee: 12 Months
Service: Service Online Or Send Engineer Color: White
Voltage: 380V ,50HZ Embossing: Steel To Rubber Embossing Unit
Highlight:

Hankerchief Tissue Paper Production Line

,

pocket tissue paper production line

,

High Speed Tissue Paper Production line

  • SP-1LPocket tissue (handkerchief tissue) folding machine with separator

Speed of the separator: 600 pieces/min

Programming control: PLC

Parameter setting: Touch screen

Speed control: Frequency converter

Raw material:13-25gm 1-3plies

Width of jumbo roll:210mm

Outer Dia. of jumbo roll:1100mm

Inner Dia. of jumbo roll core:76.2mm

Braking:Pneumatic

Embossing unit:single embossing (steel to rubber, stamp designed by user)

Vacuum pump: 5.5Kw, 380V, 50Hz

Production speed:600PCS/min (controlled by frequency converter)

Finished products unfold size: 210*210mm

Finished products folded size: 102*52mm and 72*52mm

Main transmission: chain and chain wheel transmission

Power: 0.75kw, 380v, 50Hz

Pressure of pneumatic system:6kg/cm2(user supplied)

Counter: electronic counter

Overall size: 3851×650×1380mm(L×W×H)

Over weight: about 1T

High Speed Tissue Paper Production Pocket Tissue Hankerchief Production Line High Efficient 0

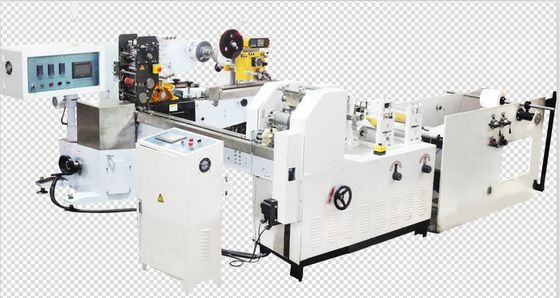

SP-1LPocket tissue folding machine with separator

  • XB202 Automatic pocket tissue (handkerchief tissue) packing machine

Size of finished product: standard size:L=102mm, W=52mm, H=22-26mm

Mini size:L=72mm, W=52mm, H=22-26mm

Machine speed: 100bags/min

Stable speed: 90bags/min

Heating power: 3.5Kw, 220V, 50Hz

Drive power: 1.5Kw, 380V, 50Hz

Packing material: double-sided heat sealing membrane such as CPP, PE, CPP

Programming control: PLC (SIEMENS)

Frequency converter: MITSUBISHI

Air pressure: 0.6Mpa (user supplied)

Parameter setting: Touch screen (WEINVIEW)

Step Motor: 0.38Kw, 380V, 50Hz (KINCO)

Machine size: 2840*2650*1720mm (L*W*H)

Screws: All are hexagon socket

Machine weight: 1.5T

High Speed Tissue Paper Production Pocket Tissue Hankerchief Production Line High Efficient 1

XB202 Automatic handkerchief tissue packing machine

  • TB380A Automatic pocket tissue (handkerchief tissue) wrapping machine (single channel)

Size of finished product: 5*2(standard size:260*102*44/52mm,

mini size:260*72*44/52mm)

Machine speed: 8-12bags/min

Heating power: 1.78Kw, 380V, 50Hz

Drive power: 1.5Kw, 380V, 50Hz

Packing material: double-sided heat sealing membrane such as CPP, PE, etc.

Programming control: PLC (SIEMENS)

Frequency converter: MITSUBISHI

Air pressure: 0.6Mpa (user supplied)

Parameter setting: Touch screen (WEINVIEW)

Step Motor: 0.38Kw, 380V, 50Hz (WOTO)

Machine size: 2500*2350*1550mm (L*W*H)

Machine weight: 1.4T

High Speed Tissue Paper Production Pocket Tissue Hankerchief Production Line High Efficient 2

TB 380A Automatic pocket tissue wrapping machine
