Maxi Roll / Toilet Roll Rewinding Machine 200-300 Meters / Min Speed
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Paper Gsm: | 13-15gsm/ply, 1-3plies | Speed: | 200-300 Meters/min |
|---|---|---|---|
| Edge Embossing: | Optional (recommend ) | Embossing: | Steel To Rubber |
| Diameter Of Backstand: | Maxi. 1500mm | Product Diameter: | 90-300mm |
| Warranty: | One Year | Machine Color: | White Or Customized |
| Highlight: | toilet roll rewinding machine,Paper Toilet Roll Rewinding Machine |
||
Product Description
Machine features:
1. Scope: maxi roll / kitchen towel / JRT / Industrial roll
2. Equipped with on line slitters
3. Winding log diameter Φ100-600mm
4. Optional unit: Edge-embossing,Embossing unit, Lamination unit
5.Out-standing performance of lamination station: No glue leakage out, less vibration, equal glue application, ply bonding well
Embossing / Lamination
The web plies can be embossed with a dedicated pattern to yield bulk and softness.
Adding Light glue during the embossing process, we will have laminated products. It will bring extra softness/absorbency/high bulk to the tissue products.
The web plies can be embossed with a dedicated pattern to yield bulk and softness.
Adding Light glue during the embossing process, we will have laminated products. It will bring extra softness/absorbency/high bulk to the tissue products.

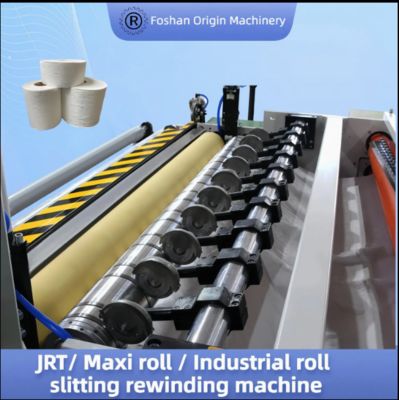

Slitting system
Multiple on line slitters
Multiple on line slitters
| Machine Model | PFF-C |
| Jumbo roll width | 1750/2000/2950mm other sizes to be specified |
| Jumbo roll diameter | <=1500mm |
| Design speed | 300m/min |
| Running speed | 0-200m/min |
| Finished product diameter | Φ90-350mm other sizes to be specified |
| Driving system | Independent motor drive for each functional unit |
| Sltinng system | Synchronous slitting blades Slitting width: 90-100mm,180-200mm other sizes to be specified |
| Rewinding system | By Air-shaft |
| Embossers (options) | Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
