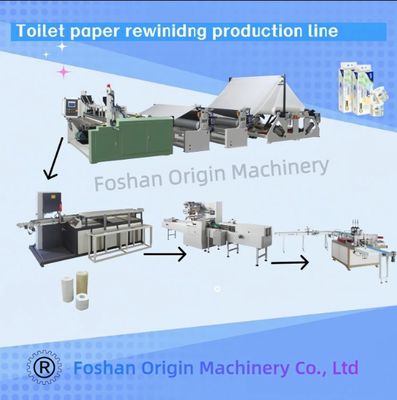

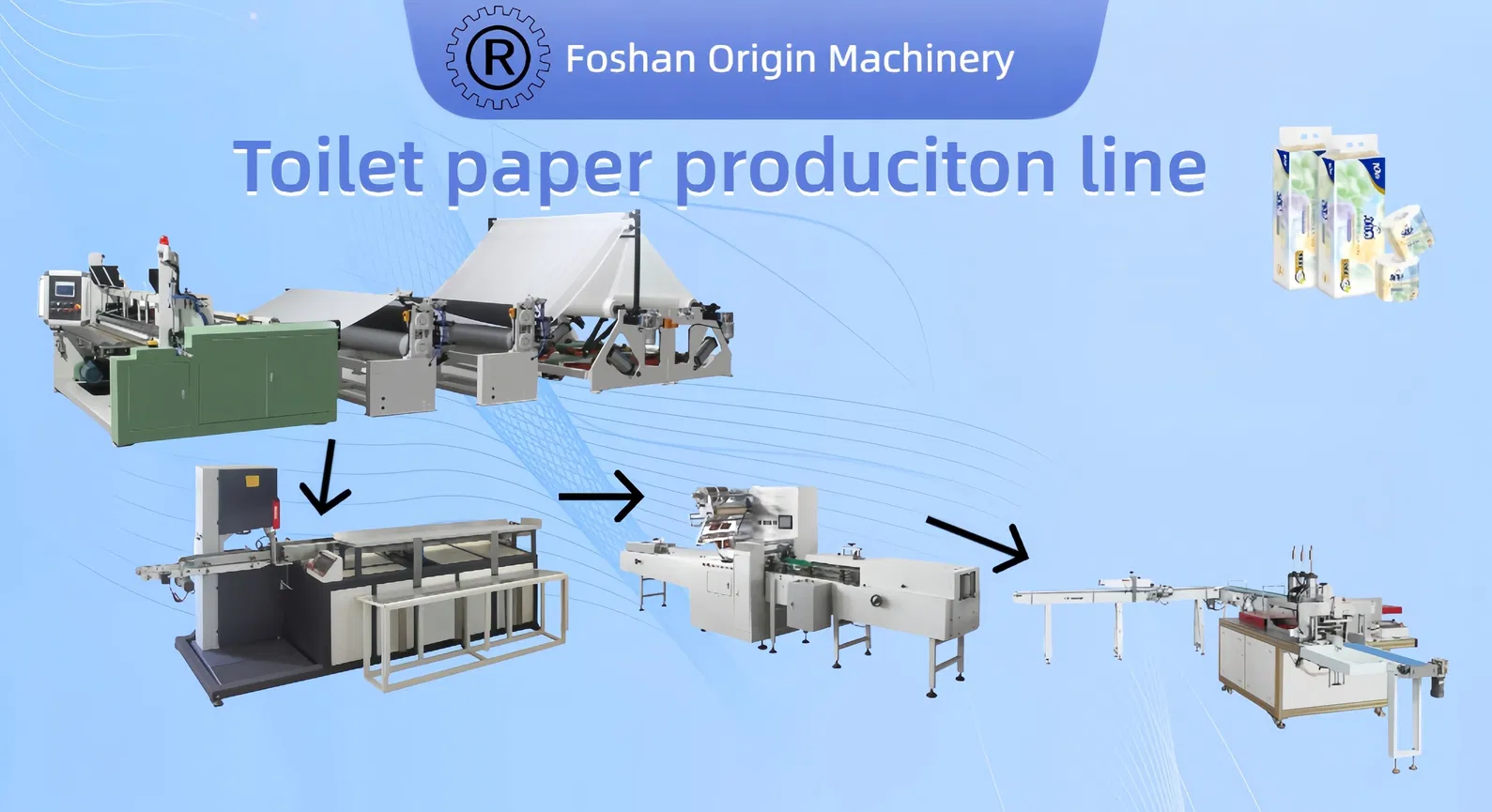

Toilet Paper / Maxi Roll / JRT / Industrial Hand Towel Rewinder Making Machine Production Line Economic
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Paper Gsm: | 13-15gsm/ply, 1-3plies | Speed Of Rewinder: | 200-220meters/min |
|---|---|---|---|
| Product: | Toilet Roll/JRT/HRT | Cutting Speed: | 110 Cuts/min |
| Packing Speed: | 10-12 Bags/min | Voltage: | 380V ,50HZ |
| Warranty: | One Year | ||
| Highlight: | Maxi Roll Toilet Paper Rewinder,Hand Towel Rewinder Making Machine,JRT Toilet Paper Rewinder |
||
Product Description
Machine features:
1. Scope: Toilet roll /kitchen towel / Bed sheet roll
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding log diameter Φ80-300mm, band saw cutting roll diameter Φ80-135mm
4. Optional unit: Edge-embossing,Embossing unit, Lamination unit
5. Single roll wrapping by plastic or copy paper
6. Bundle package : maximum 48rolls/ package

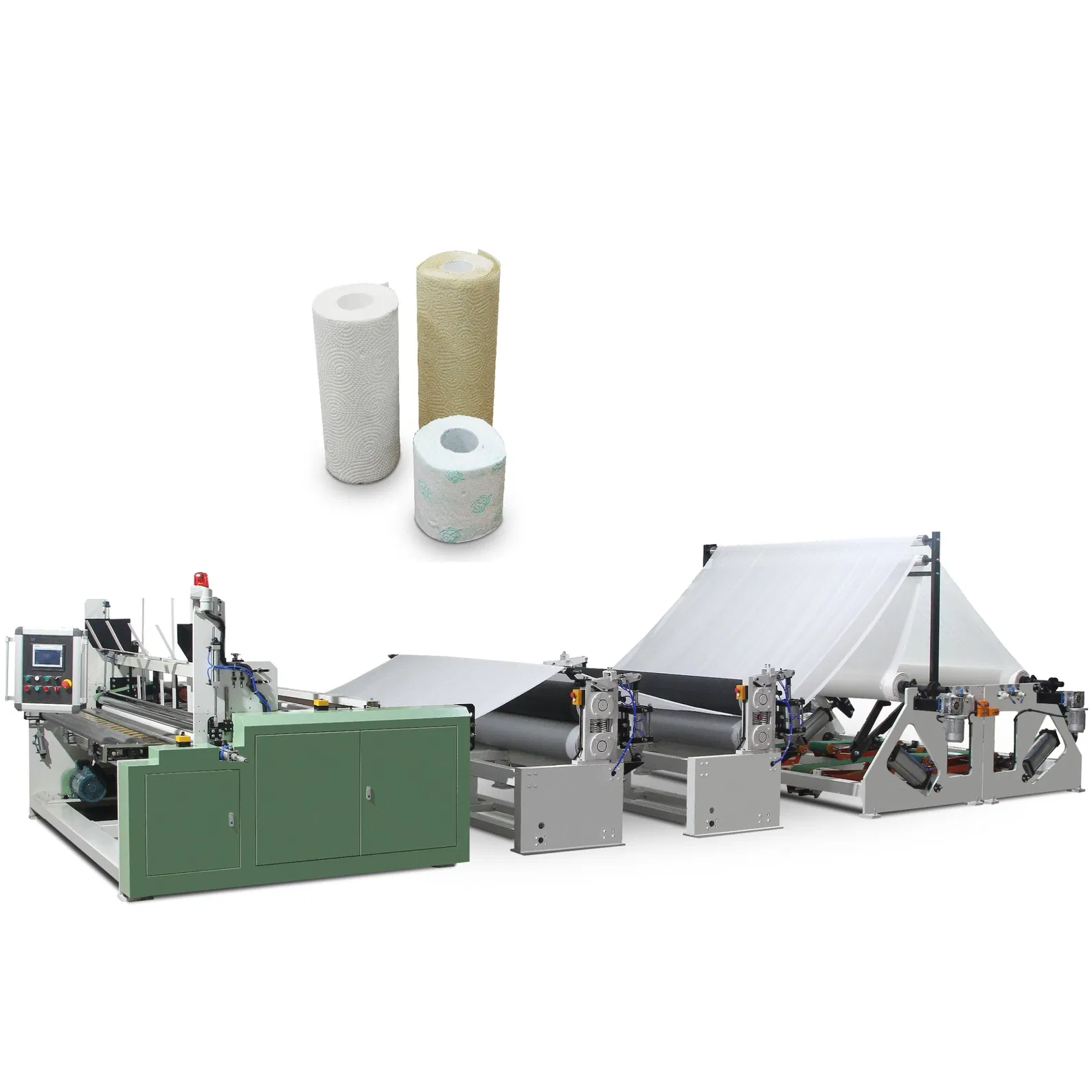

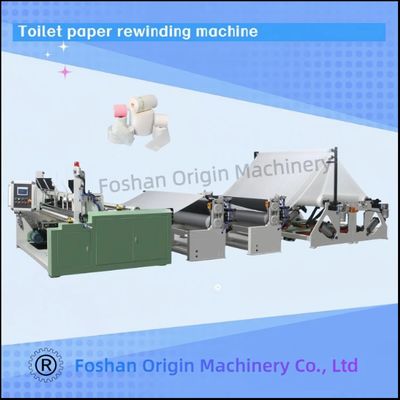

Toielt roll / Kitchen towel Rewinding machine
Machine features:
1. Individual motor driving wall-type unwinder. It has simple and strong structure, it is easy for cleaning.
Standard jumbo roll diameter ≤Φ1500mm.
Larger jumbo roll size unwinders are available to be ordered.
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding diameter Φ90-300mm
One rewinder can various rolled tissue products, rolls' diameter from 90mm to 300mm.
4. Each unit is driven by independent motor. The driving system doesn't adopt gearbox , manual speed adjustor any more. Driving system is simpler and easy maintenance.
5. Web tension at each unit could be set on the touch screen.
Machine features:
1. Individual motor driving wall-type unwinder. It has simple and strong structure, it is easy for cleaning.
Standard jumbo roll diameter ≤Φ1500mm.
Larger jumbo roll size unwinders are available to be ordered.
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding diameter Φ90-300mm
One rewinder can various rolled tissue products, rolls' diameter from 90mm to 300mm.
4. Each unit is driven by independent motor. The driving system doesn't adopt gearbox , manual speed adjustor any more. Driving system is simpler and easy maintenance.
5. Web tension at each unit could be set on the touch screen.

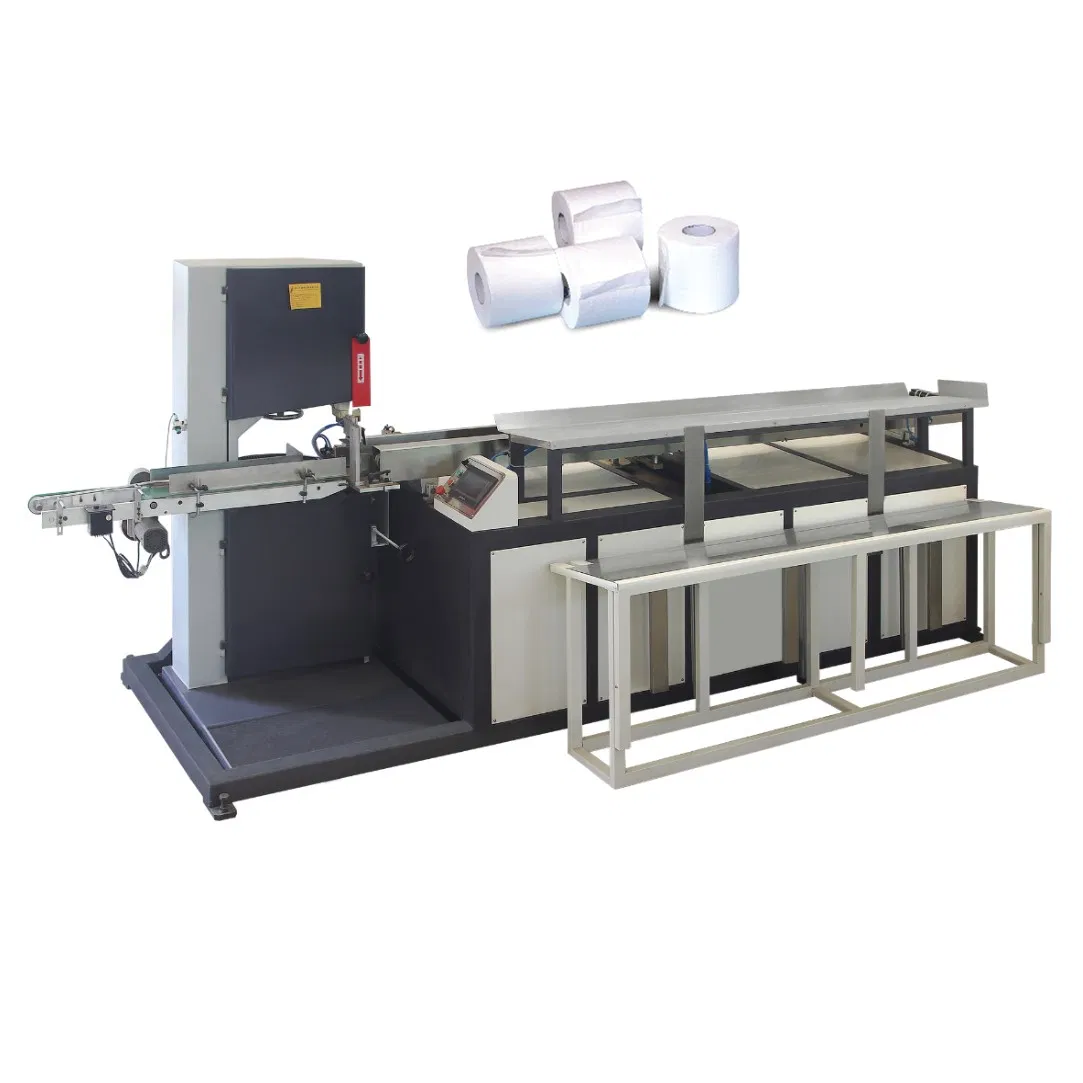

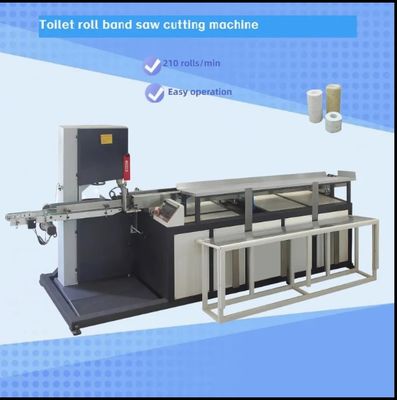

Automatic toilet roll / kitchen towel band saw
Machine features:
Machine features:
This machine is designed for cutting toilet paper and kitchen roll.
1. This machine runs automatically. It avoids the danger of manual cutting.
2. Equipped with a paper logs transfer stand to connect the upstream rewinder. ,.
3. Equipped with touch screen setting system, easy to set the parameters. ,
4. Easy maintain structure. .

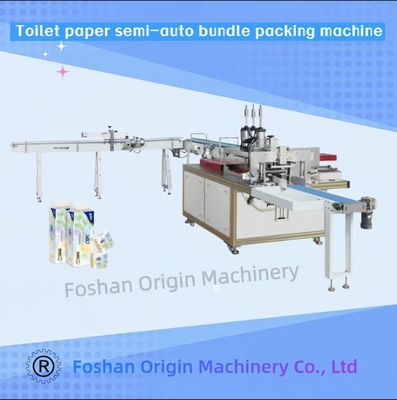

This cutting machine combines high-automation and economic price.Automatic toilet roll / kitchen towel bundle packing machine
This machine adopts servo control system. It has automatic counting and group tissue rolls and transfer them into per-made bags on configuration of 2,4,6,8,10,12 rolls per bag. It can be run by only one person.
This machine adopts servo control system. It has automatic counting and group tissue rolls and transfer them into per-made bags on configuration of 2,4,6,8,10,12 rolls per bag. It can be run by only one person.
| Machine Model | DFJ-X |
| Jumbo roll width | 1750/2000/2950mm other sizes to be specified |
| Jumbo roll diameter | <=1500mm |
| Design speed | 300m/min |
| Running speed | 0-200m/min |
| Finished product diameter | Φ80-300mm |
| Driving system | Independent motor drive for each functional unit |
| Perforation unit | 6pcs/4pcs spiral perforation blades |
| Embossers (options) | Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
