Manually Sealing Toilet Paper Making Machine Small Easy Manual Machine
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Gsm: | 13-15gsm,1-3 Plies | Speed: | 200-300 Meters/min |
|---|---|---|---|
| Embossing Unit: | Steel To Rubber Embossing Unit (optional) | Edge Embossing Unit: | Optional |
| Cutting: | Manually | Sealing: | Manually |
| Warranty: | One Year | Packing: | Wooden Pallet |
| Highlight: | Toilet Paper Making Machine Easy Operation,Small Toilet Paper Making Machine,Manual Sealing Toilet Paper Making Machine |
||
Product Description
Machine features:
1. Scope: Toilet roll /kitchen towel / Bed sheet roll
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding log diameter Φ80-300mm, band saw cutting roll diameter Φ80-135mm
4. Optional unit: Edge-embossing,Embossing unit, Lamination unit
5. Single roll wrapping by plastic or copy paper
6. Bundle package : maximum 48rolls/ package

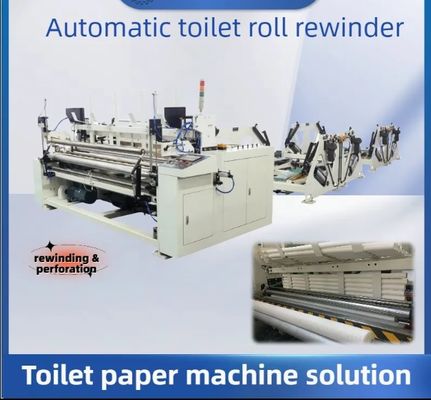

Toielt roll / Kitchen towel Rewinding machine
Machine features:
1. Individual motor driving wall-type unwinder. It has simple and strong structure, it is easy for cleaning.
Standard jumbo roll diameter ≤Φ1500mm.
Larger jumbo roll size unwinders are available to be ordered.
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding diameter Φ90-300mm
One rewinder can various rolled tissue products, rolls' diameter from 90mm to 300mm.
4. Each unit is driven by independent motor. The driving system doesn't adopt gearbox , manual speed adjustor any more. Driving system is simpler and easy maintenance.
5. Web tension at each unit could be set on the touch screen.
Machine features:
1. Individual motor driving wall-type unwinder. It has simple and strong structure, it is easy for cleaning.
Standard jumbo roll diameter ≤Φ1500mm.
Larger jumbo roll size unwinders are available to be ordered.
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding diameter Φ90-300mm
One rewinder can various rolled tissue products, rolls' diameter from 90mm to 300mm.
4. Each unit is driven by independent motor. The driving system doesn't adopt gearbox , manual speed adjustor any more. Driving system is simpler and easy maintenance.
5. Web tension at each unit could be set on the touch screen.

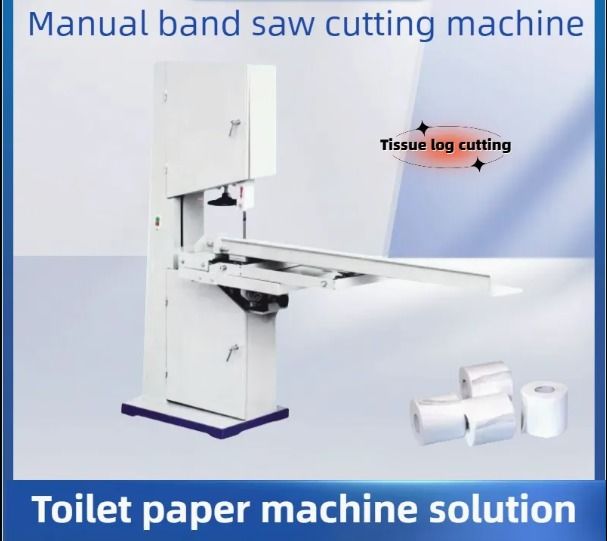

Manual toilet roll / kitchen towel band saw
1. Manual Band Saw Cutter can be used with toilet paper machine and facial tissue processing machine;
2. With the moving plate, the paper rolls are slit according to required length and width;
3. The blade is be grinded automatically. The machine has device of movable bedplate.
Manually seal toilet roll bundle package with plastic per-made bag.
| Machine Model | DFJ-X |
| Jumbo roll width | 1750/2000/2950mm other sizes to be specified |
| Jumbo roll diameter | <=1500mm |
| Design speed | 300m/min |
| Running speed | 0-200m/min |
| Finished product diameter | Φ80-300mm |
| Driving system | Independent motor drive for each functional unit |
| Perforation unit | 6pcs/4pcs spiral perforation blades |
| Embossers (options) | Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
