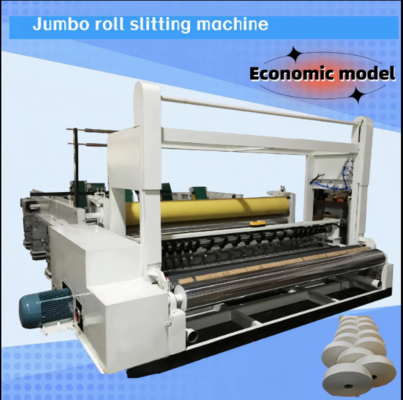

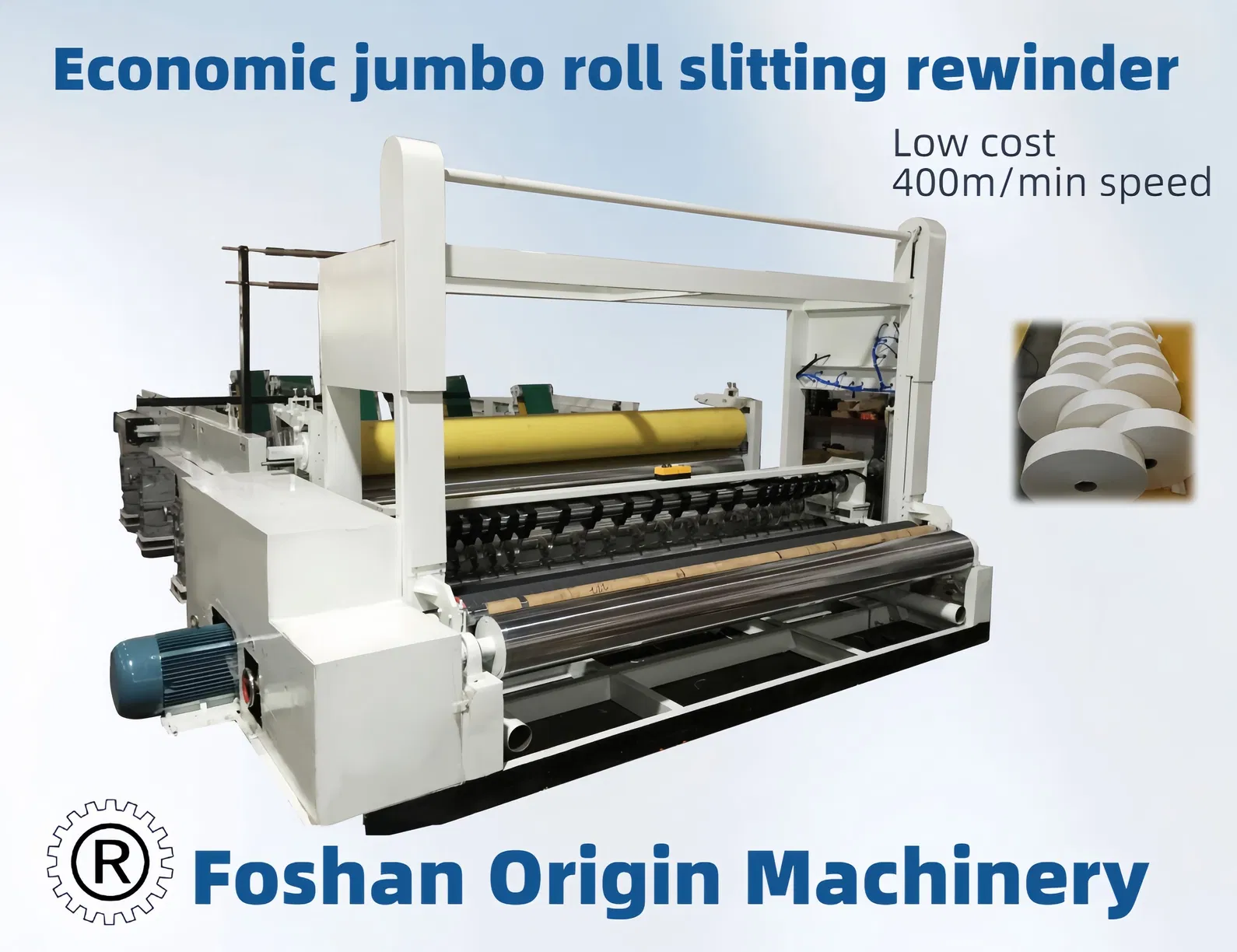

1800mm Finished Jumbo Roll Slitting Machine Rewinding With Good Efficient
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Paper Gsm: | 13-15gsm/ply, 1-3plies | Slitting Knife: | Including |
|---|---|---|---|
| Slitting Speed: | 400meters/min | Finished Product Diameter: | Φ100-1800mm Other Sizes To Be Specified |
| Edge Embossing Unit: | Optional | Embossing Unit: | Optional |
| Voltage: | 380V ,50HZ | Warranty: | One Year |
| Highlight: | Jumbo Roll Slitting Rewinding Machine,Rewinding Jumbo Roll Slitting Machine |
||
Product Description
This machine is designed for slitting and rewinding tissue jumbo rolls to obtain the paper reels with the required specifications for converting machines. It features a wallboard-type mechanical structure, ensuring stable high-speed operation and compact winding performance. The lower slitting unit features an integral blade shaft fully equipped with a multi-blade cutting set, adaptable to various cutting specifications.

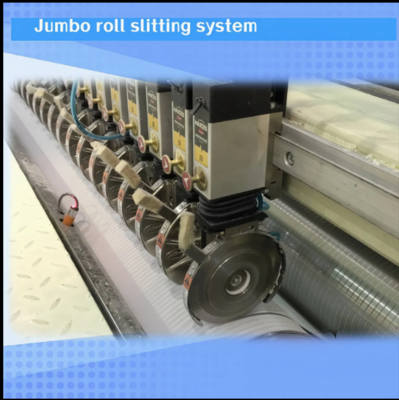

Slitters

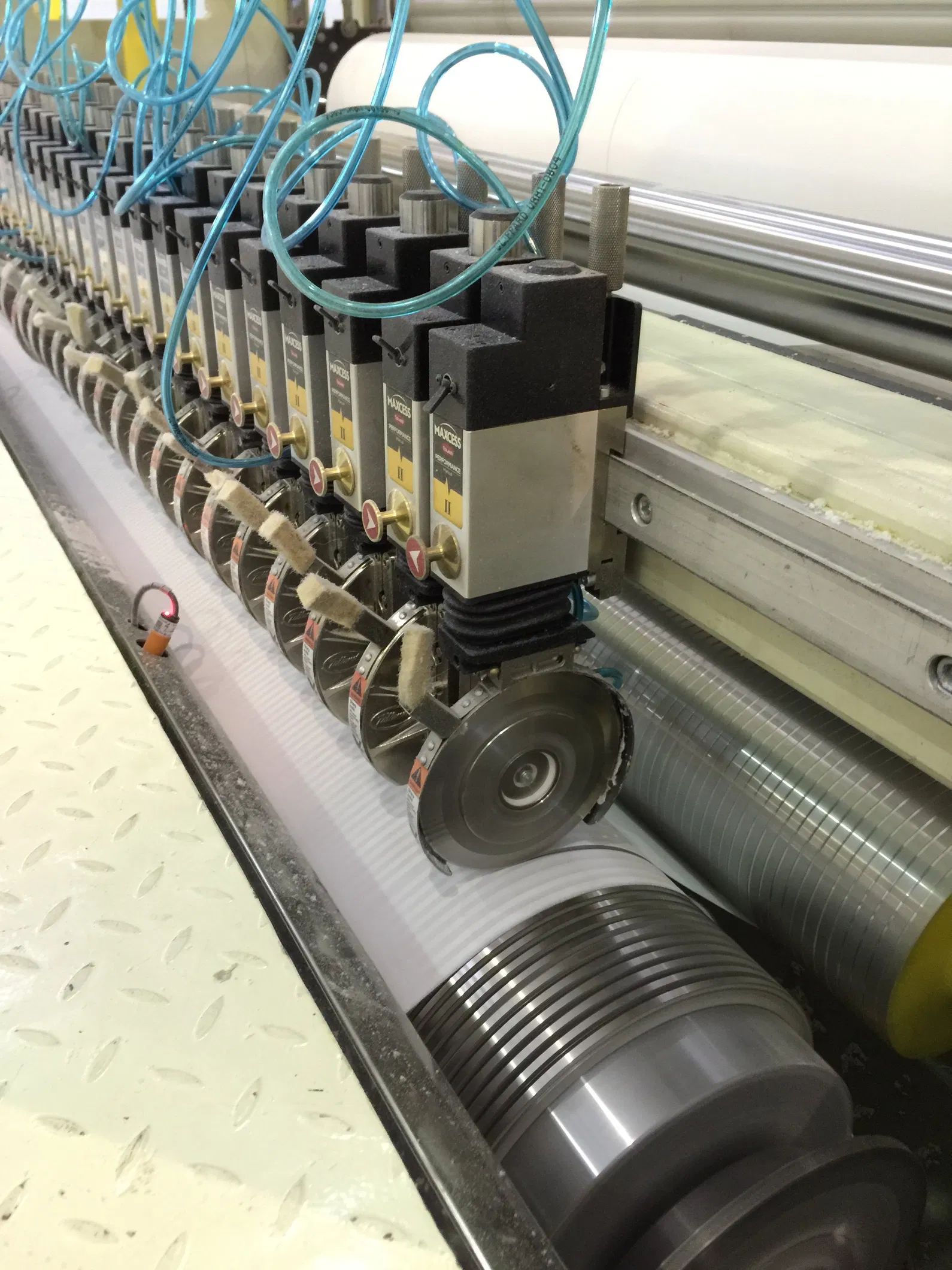

Pneumatic slitters
minmums slitter width 80mm
Pneumatic slitters
minmums slitter width 80mm

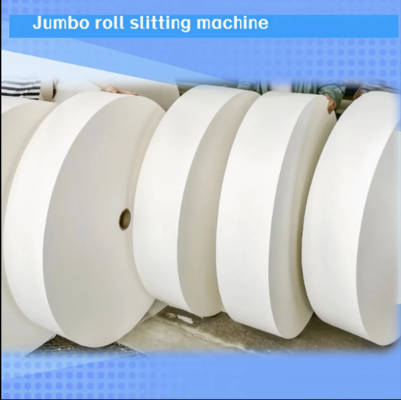

Finished pape roll
Autoamtic discharge device
Autoamtic discharge device
| Machine Model | FC-II |
| Jumbo roll width | 2600/2900/3200/3600/4200mm other sizes to be specified |
| Parent roll diameter | <=Φ2500mm other sizes to be specified |
| Running speed | 400m/min |
| Finished product diameter | Φ100-1800mm other sizes to be specified |
| Width of finished product | >=60mm |
| Finished product paper core diameter | 76.2mm other sizes to be specified |
| Web spreading roller | Rubber arc roller |
| Calender | /Steel to rubber or Steel to Steel |
| Sltinng system | Auto servo control upper blades. Lower blade shaft is equipped with a multi-blade cutting set |
| Rewinding system | By Air-shaft |
| Finished product unload | Hydraulic |
| Edge trimming | Vacuum |
