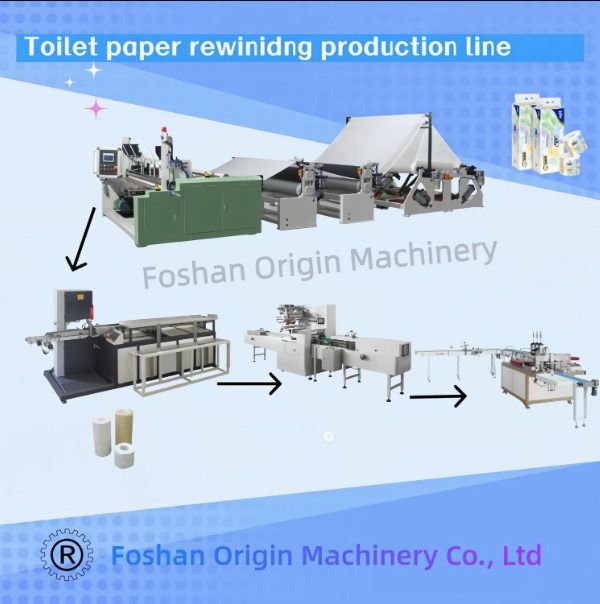

Fully Automatic Toilet Paper Production Line with glue lamination unit
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | 1575-3000 | Speed: | 200-300 Meters/min |
|---|---|---|---|
| Paper Gsm: | 13-15gsm/ply, 1-3plies | Embossing Unit: | Steel To Rubber Embossing Unit (optional) |
| Edge Embossing: | Optional | Product Diameter: | 90-300mm |
| Machine Color: | White Or Customized | Warranty: | One Year |
| Cutting Speed: | 120 Cuts/min | Single Roll Wrapping Machine: | Optional |
| Bundle Roll Packing Machine: | Optional | ||
| Highlight: | fully automatic toilet paper machine,toilet paper production line with glue lamination,automatic toilet paper manufacturing equipment |
||
Product Description
Machine features:
1. Scope: Toilet roll / maxi roll / kitchen towel / JRT / Bed roll / Auto cut
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding log diameter Φ80-300mm
4. Optional unit: Edge-embossing,Embossing unit, Lamination unit
5.Out-standing performance of lamination station: No glue leakage out, less vibration, equal glue application, ply bonding well

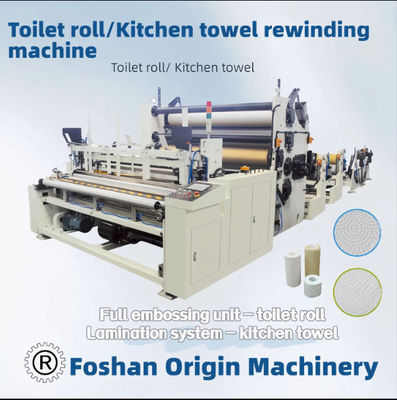

Embossing / Lamination
The web plies can be embossed with a dedicated pattern to yield bulk and softness.
Adding Light glue during the embossing process, we will have laminated products. It will bring extra softness/absorbency/high bulk to the tissue products.
The web plies can be embossed with a dedicated pattern to yield bulk and softness.
Adding Light glue during the embossing process, we will have laminated products. It will bring extra softness/absorbency/high bulk to the tissue products.
Perforation system
Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.

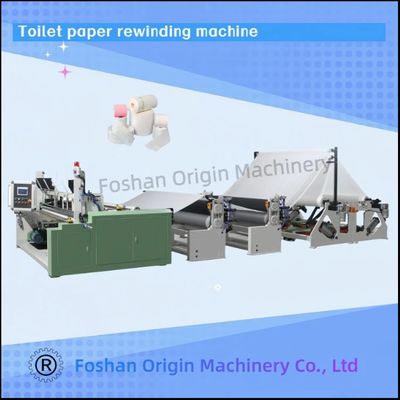

Winding system
One rewinder converts various rolled tissue products, winding diameter from 90mm to 300mm.
It is equipped with paper core guiding device. When we produce JRT roll, it keeps two ends of the JRT log flat and smooth. It helps to reduce the trimming wastage a lot.
One rewinder converts various rolled tissue products, winding diameter from 90mm to 300mm.
It is equipped with paper core guiding device. When we produce JRT roll, it keeps two ends of the JRT log flat and smooth. It helps to reduce the trimming wastage a lot.
| Machine Model | DFJ-X |
| Jumbo roll width | 1750/2000/2950mm other sizes to be specified |
| Jumbo roll diameter | <=1500mm |
| Design speed | 300m/min |
| Running speed | 0-200m/min |
| Finished product diameter | Φ80-300mm |
| Driving system | Independent motor drive for each functional unit |
| Perforation unit | 6pcs/4pcs spiral perforation blades |
| Embossers (options) | Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
