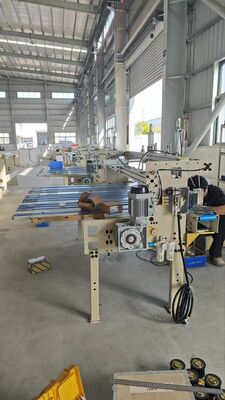

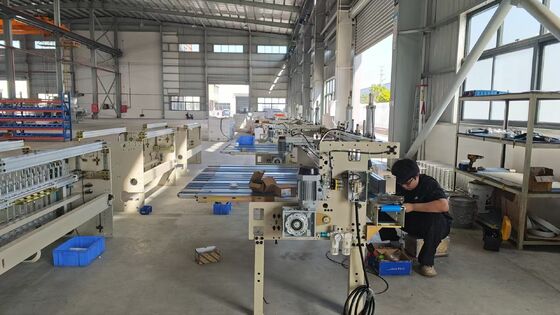

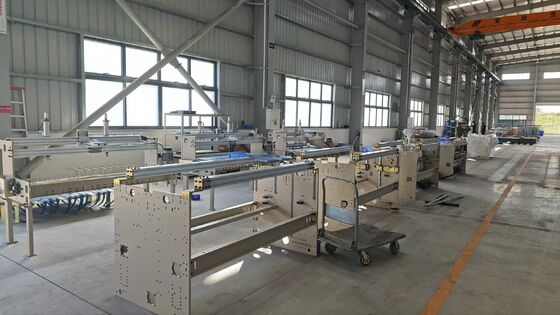

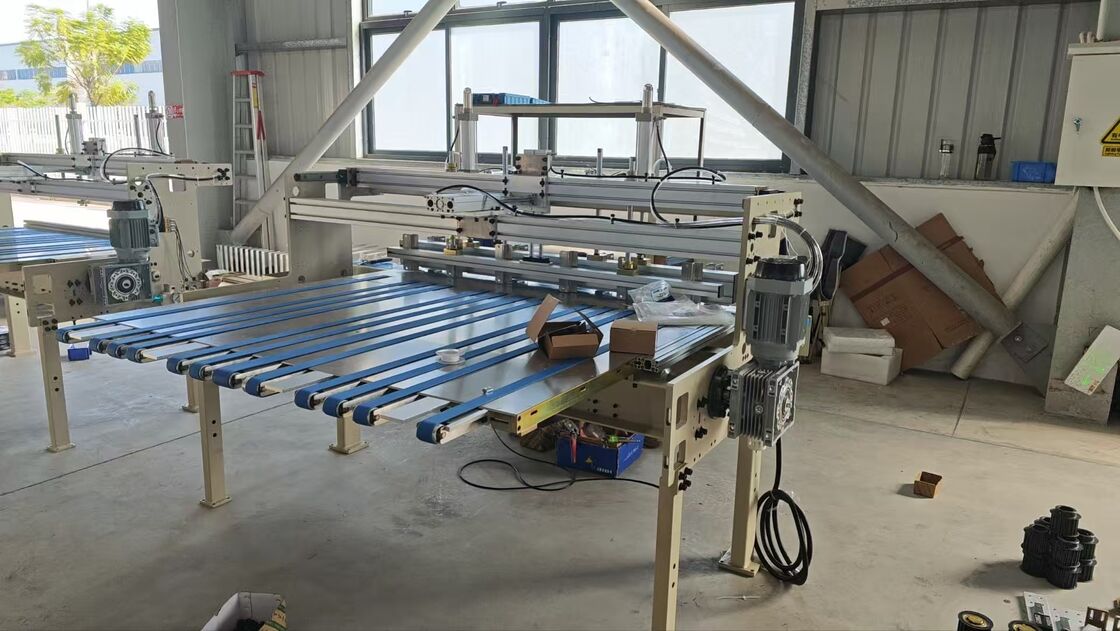

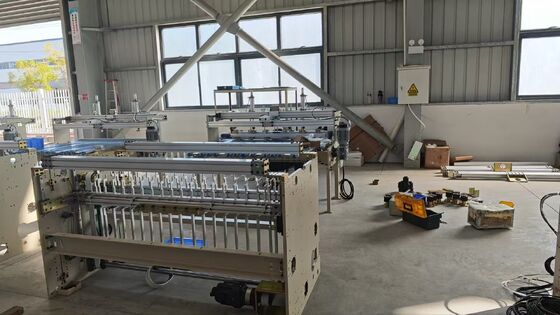

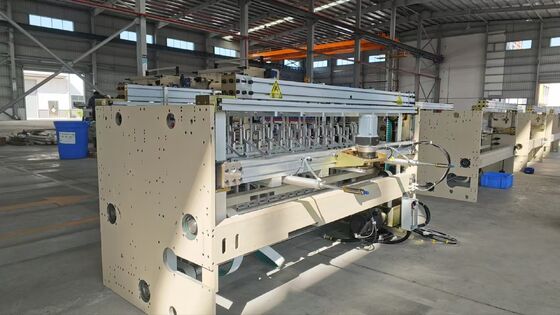

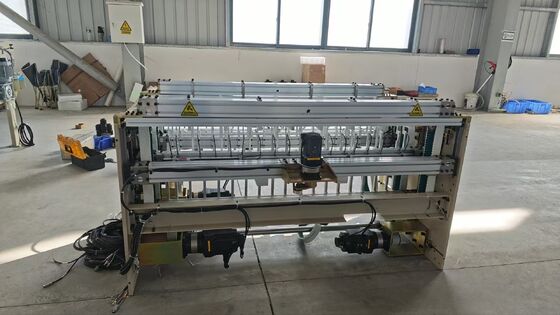

Additionaly The Automatic Transfer for V Fold Folding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Speed: | 12 Logs/min | Color: | White |
|---|---|---|---|
| Control: | PLC | Voltage: | 380V ,50HZ |
| Electric Current: | 20A | ||
| Highlight: | V Fold Folding Machine Automatic Transfer,PLC Control Interfolded Machine Automatic Transfer |
||
Machine Features:
1. Equipped with glue lamination system, ideal for producing high-end value-added tissues such as V fold kitchen towels and hand towels. Produces fluffy, highly absorbent paper towels.
2. Utilizes high-precision engraved embossing rollers to create vivid, three-dimensional patterns. The roller surface is smooth and burr-free, ensuring well-defined and durable pattern formation.
3. Features an automatic circulating glue application system with adjustable glue dosage control, precise and even glue application.
| Machine Model | HMJ-XL |
| Parent Roll Width | 1500/2000/2800 mm (to be confirmed by customer) |
| Parent Roll diameter | ≤1500mm |
| Unwinder driving | Independent frequency driving, consistent unwinding web tension. |
| Folding function | 4-roll folding |
| slitting Sheet size | 175 / 180/190/200/210mm (to be confirmed by customer) |
| Sheet slitting structure | Sprial slitting blades |
| Counting | pneumatic log shfiting / ink mark |
| Embossing (options) independent drive |
Multiple specifications 4-sides position embossing Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
| Designed speed | 130m/min |
| Prodution speed | 100m/min |
| Driving system | Independent variable frequency drives for each functional unit |

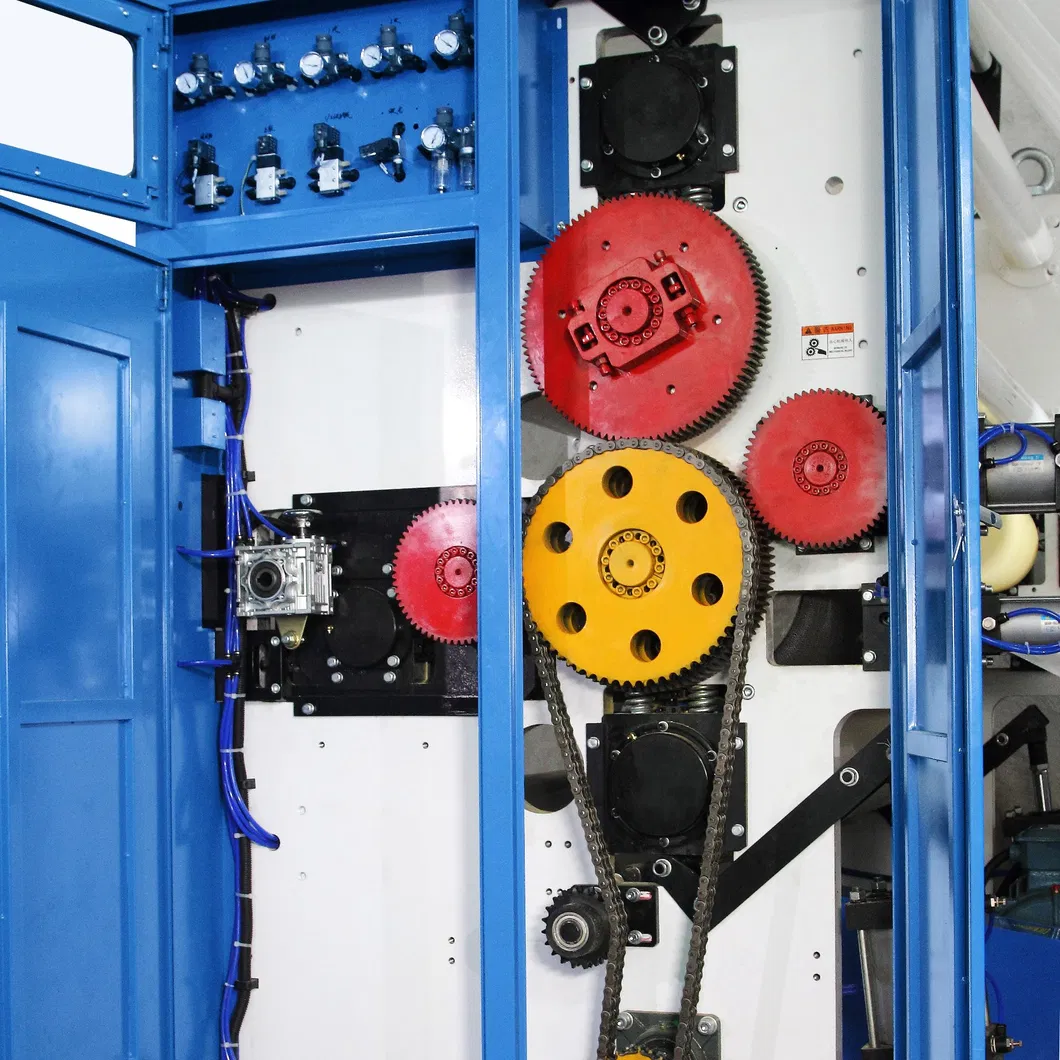

- Individual driving system

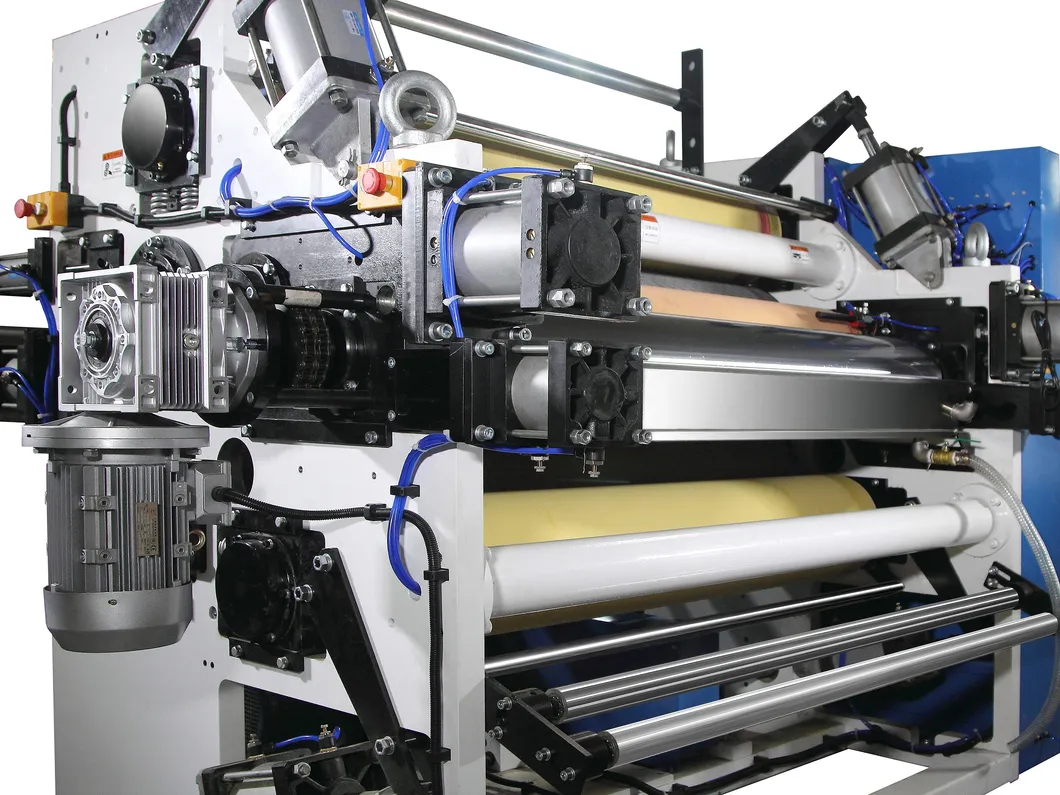

Lamiantion system

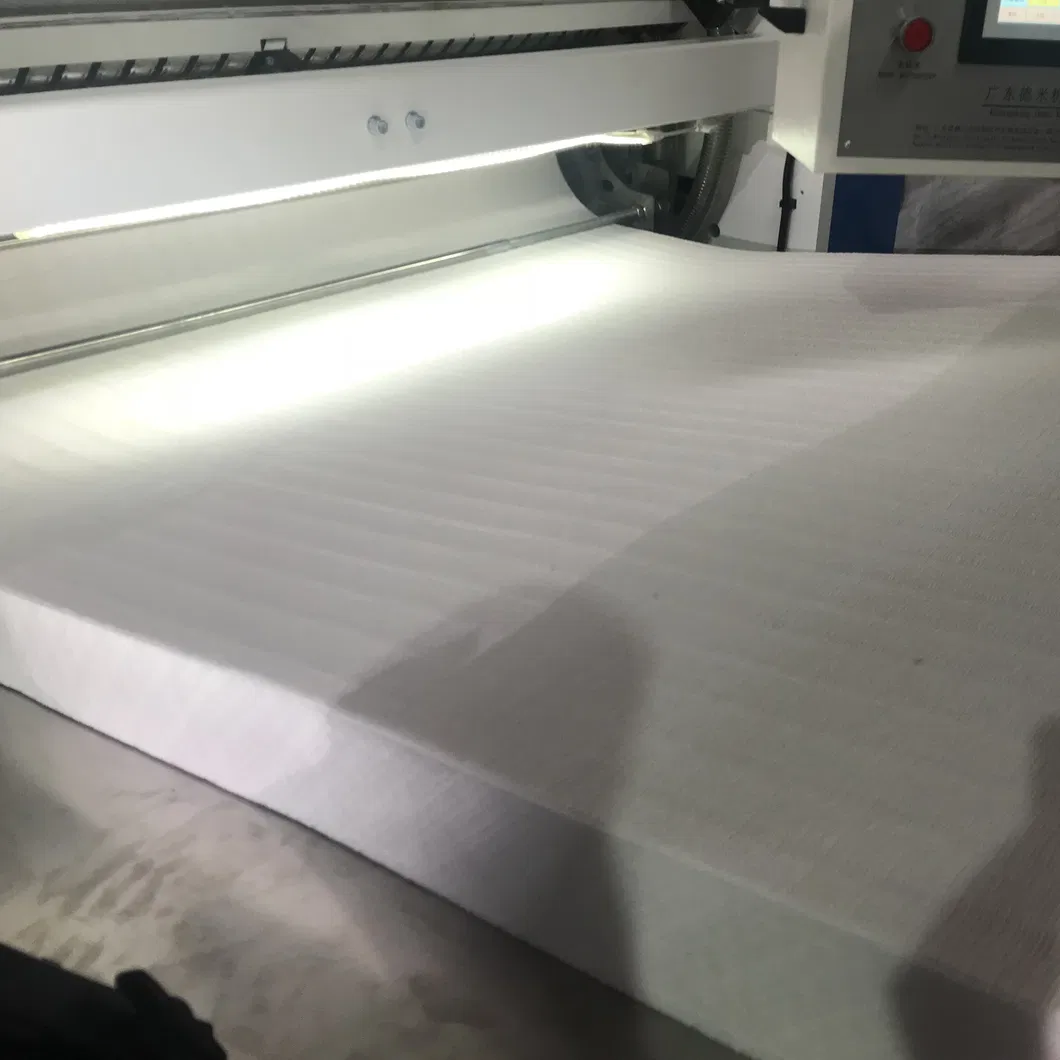

3. Tissue output
