Blue Color Tissue Paper Production Line With Single And Bundle Packing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Speed: | 700piece/min | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power(w): | 15KW |
| Product Type: | Paper Making Machinery | Warranty: | 12months |
| Capacity: | 3 Tons Per Day | Color: | Blue |
| Highlight: | tissue paper manufacturing machine,tissue making equipment |
||

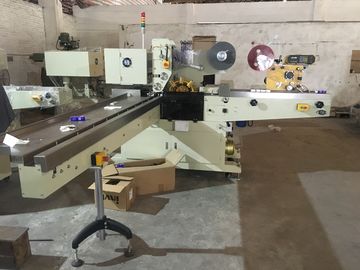

Automatic Single Line Pocket Tissue Production Line with single packing and bundle packing

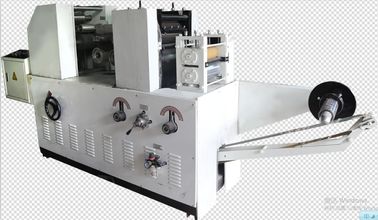

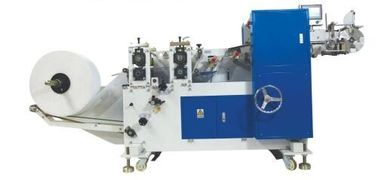

SP-1L Automatic pocket tissue folding machine
Features:
1. Fully automatic counting and separating
2. High speed:700PCS/min
3. Standard size and mini size can make in 1 machine
4. Easy to connect with single packing machine
| Model | SP-1L |
| Max.Jumbo roll width | 200-201mm |
| Max.jumbo roll diameter | 1500mm |
| Finished product size | (50-54)*(72/102)mm should be chosen |
| Embossing unit | Steel to rubber/steel to paper/steel to steel(option) |
| Vacuum pump | 7.5Kw,380V,50Hz |
| Counting | Automatic counting,6/8/10/12pcs,setting on touch screen |
| Parameter setting | Touch screen |
| Main power | 1.5Kw,380V,50Hz |
| Working speed | 600-650pcs/min |
| Air pressure | 0.8Mpa |
| Machine size | 2380*750*1570mm |

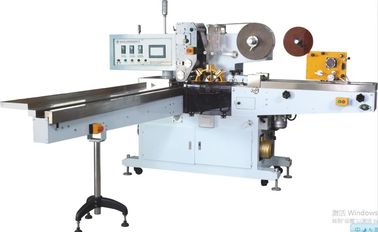

XB202 Automatic Pocket Tissue Packing Machine
Features:
1. Fully automatic:film cutting,tearing,labeling in once.
2. High speed:100bags/min
3. High quality:the important bearings are from Germeny
4. Standard size and mini size can pack in one machine
| Model | XB202 |
| Packing size | (70-110)*(50-55)*(20-28)mm(L*W*H) |
| Working speed | 60-105bags/min |
| Machine power | 4.68Kw,380V,50Hz |
| Air pressure | 0.8Mpa |
| Packing film material | CPP,PE,OPP |
| PLC control | SIEMENS |
| Frequency converter | MITSUBISHI |
| Parameter setting | Touch screen(Weinview) |
| Machine size | 2840*2650*1720mm(L*W*H) |
| Machine weight | About 1500Kg |
TB380A Automatic Bundle Wrapping Machine
Features:
1. Fully automatic:single bags receiving,film cutting,film folding and film sealing in once.
2. High speed:15bags/min
3. standard size and mini size can pack in 1 machine
4. 3*2,4*2,5*2,6*2,6*3,6*4 packing can be chosen.
| Model | TB380A |
| Packing size | (150-300)*(70-150)*(42-84)mm(L*W*H) |
| Working speed | 10-15bags/min |
| Power | 3.5Kw,380V,50Hz |
| Air pressure | 0.8Mpa |
| Parameter setting | Touch screen(Weinview) |
| PLC control | SIEMENS |
| Packing film material | CPP,PE,OPP |
| Machine size | 2500*3200*1550mm(L*W*H) |
| Machine weight | About 1200Kg |
