Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DMFJ-2600//3000A
Payment & Shipping Terms
Minimum Order Quantity: 1SEST
Price: Negotiable
Packaging Details: wooden pallet,2*40feet container can load 1 set
Delivery Time: 90 working days after receipt deposit
Supply Ability: 1set per month
Running: |
Start-Stop Production Line |
Speed: |
220meter/min |
Capacity: |
Depends On Your Jumbo Roll Width |
Voltage: |
380V,50Hz |
Servo Motor: |
MITSUBISHI |
PLC: |
MITSUBISHI |
Touch Screen: |
MITSUBISHI |
Warranty: |
1 Year |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Running: |
Start-Stop Production Line |
Speed: |
220meter/min |
Capacity: |
Depends On Your Jumbo Roll Width |
Voltage: |
380V,50Hz |
Servo Motor: |
MITSUBISHI |
PLC: |
MITSUBISHI |
Touch Screen: |
MITSUBISHI |
Warranty: |
1 Year |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |

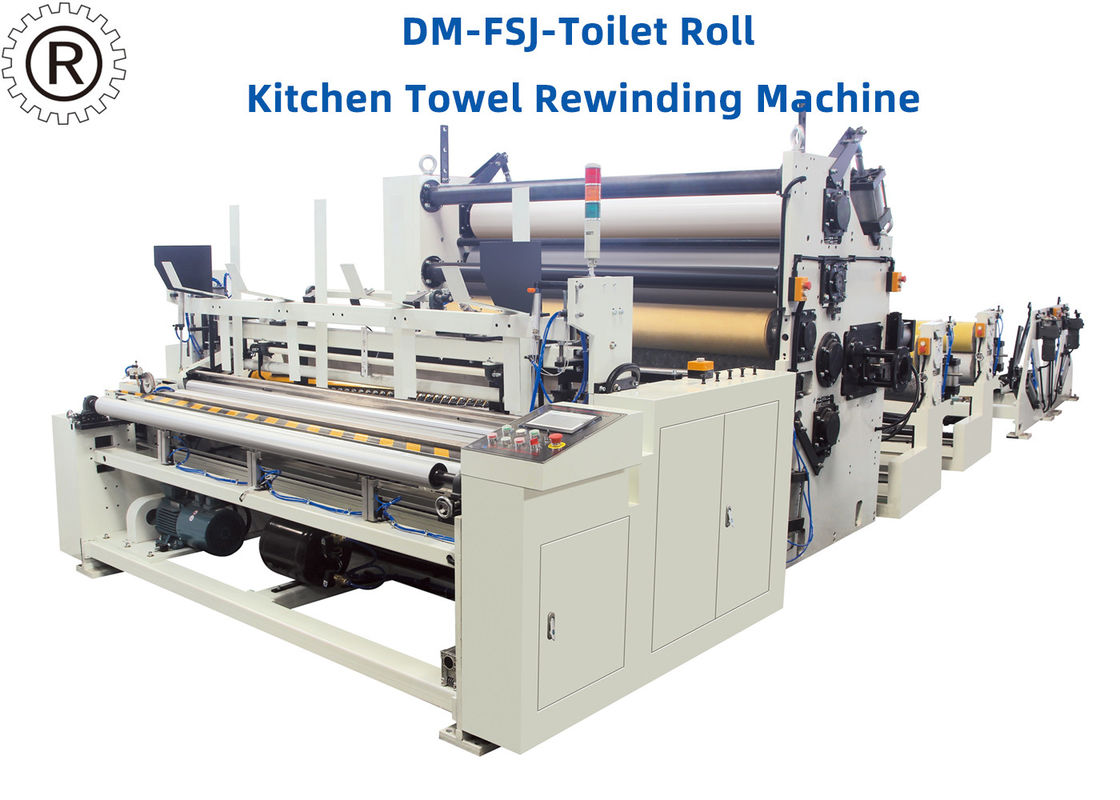

JRT AND Toilet Two Used Machine 2600mm Kitchen Towel Fully Automatic Production Line
Glue Lamination System Kitchen Towel Toilet Tissue Rewinding Machine High Speed 250meter/min
This is our video link :
DMFJ-2600(3000) Fully Automatic Productino Line
Features:
1. High speed:220m/min
2. Can do toilet .JRT in one machine , the glue lamination systme is for optional
4. MITSUBISHI PLC control makes work steadily
5. MITSUBISHI touch screen setting easy to change parameters
7. Separating motor driving
8. MITSUBISHI servo motor driving discharge rolls
9. Accumulator device
10. 2lanes high speed log saw cutter
MODLE | 2600 | 3000 |
Max.Jumbo roll width(mm) | 2550 | 2950 |
Capacity | 5 tons/day | 7 tons/day |
Finished product diameter(mm) | Ф70-300 | |
Finished product core inner diameter(mm) | Ф35-80 | |
Jumbo roll diameter(mm) | ≤Ф1500(other size should be ordered) | |
Jumbo roll core inner diameter(mm) | Ф76.2(other size should be ordered) | |
Perforating size(mm) | 110mm(other size should be ordered,4PCS spiral perforating blade) | |
Machine speed | 22m/min | |
Parameter setting | MITSUBISHI touch screen | |
PLC control | MITSUBISHI PLC | |
backstand | 1-6sets(should be ordered) | |
Air pressure | 0.8Mpa(user supply) | |
Power | 15/25Kw,380V,50Hz(base on the model) | |
Option | ||
Embossing unit | Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered) | |
Backstand | 1-6 sets(should be ordered) | |
Jumbo roll loading | Pneumatic loader/elevator(should be ordered) | |
Lamination unit | Point to point or glue for nest(should be ordered) | |
Core or coreless unit | Should be ordered | |
Core winding machine | Should be ordered | |
Automatic core feeding device | 300-600PCS storage(should be ordered) | |
Edge embossing unit | Air bag type(should be ordered) | |
Calendering unit | Steel to steel/steel to rubber(should be ordered) | |
Accumulator | 110-210rolls type(should be ordered) | |
Log saw cutter | 2 lanes log saw cutter(should be ordered) |
