50Hz Toilet Paper Production Line

50Hz Toilet Paper Production Line
Features Gallery Product Description Request A Quote
Automatic: Full Automatic
Capacity: 8-10tons/10hours
Speed: 200m/min
Voltage: 380V,50Hz
Driving: Independent Motor Driving
Touch Screen: MITSUBISHI
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Type: Toilet Tissue
Power(w): 5.5KW
Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL

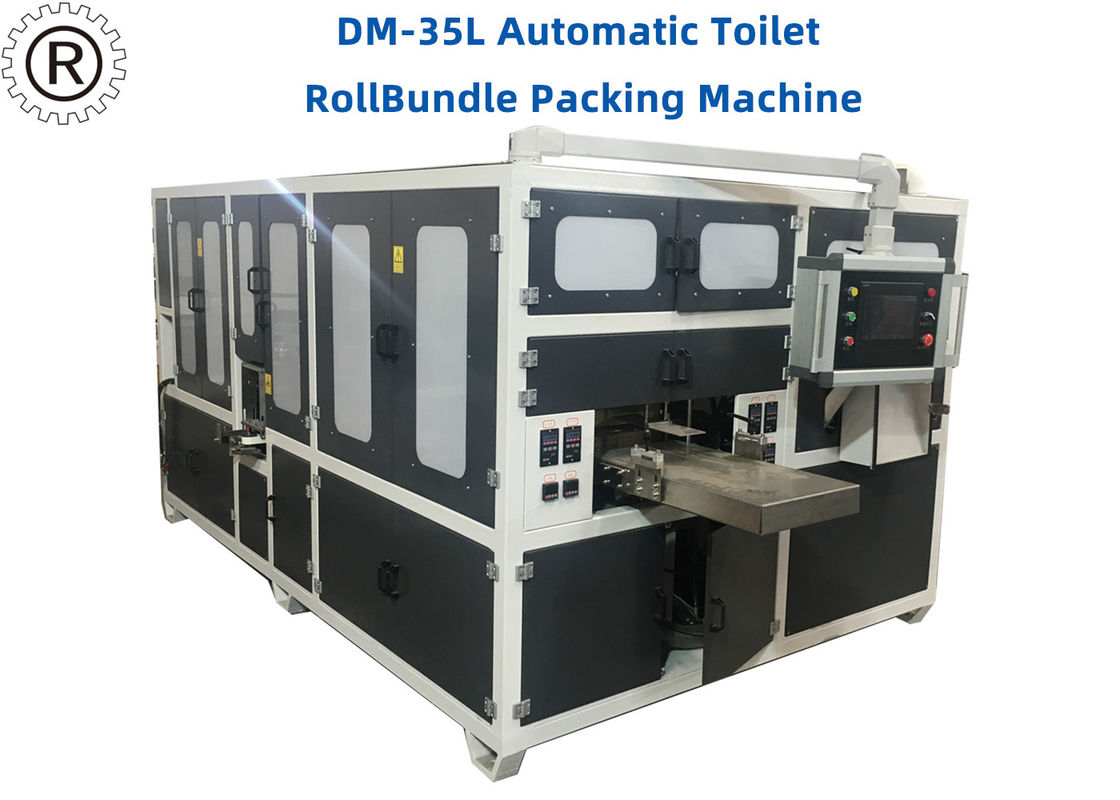

Model Number: DM-35L Automatic Toilet Roll Bundle Packing Machine
Payment & Shipping Terms
Packaging Details: wooden pallet,2*40feet container can load 1 set
Delivery Time: 90 working days after receipt deposit
Supply Ability: 1set per month
Product Description

High Speed Toilet Tissue Big Roll Kitchen Towel Production line one line three products


Energy Saving Toilet Paper Production Line Full Automatic 1 Year Warranty


DM-PL3000/2800 High Speed  Toilet Paper Rewinding Production Line




1. High speed:200m/min

2. High capacity:8tons/10hours

3. Non-stop working type,automatic and non-stop discharge rolls

4. MITSUBISHI PLC control makes work steadily

5. MITSUBISHI touch screen setting easy to change parameters

6. Automatic core feeding,tail trimming,and sealing

7. Separating motor driving

8. MITSUBISHI servo motor driving discharge rolls

9. Accumulator device

10. 2lanes high speed log saw cutter


MODL 2800 3000
Max.Jumbo roll width(mm) 2750 2950
Capacity 8tons/10hours 10tons/10hours
Finished product diameter(mm) Ф60-150
Finished product core inner diameter(mm) Ф32-50
Jumbo roll diameter(mm) ≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 200m/min
Parameter setting MITSUBISHI touch screen
backstand 1-6sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 15/25Kw,380V,50Hz(base on the model)
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
Backstand 1-6 sets(should be ordered)
Jumbo roll loading Pneumatic loader/elevator(should be ordered)
Lamination unit Point to point or glue for nest(should be ordered)
Core or coreless unit Should be ordered
Core winding machine Should be ordered
Automatic core feeding device 300-600PCS storage(should be ordered)
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
Accumulator 110-210rolls type(should be ordered)
Log saw cutter 2 lanes log saw cutter(should be ordered)
