Product Details
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: A-373
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wooden pallet,20 feet container can load 1set
Delivery Time: 90 days
Supply Ability: 5SETS PER MONTH
Warranty: |
12months |
Punching Station: |
12pcs |
Diameter Of Cylinder: |
80mm |
Max. Punching Thrust: |
8000KG Or 16000KG |
Warranty: |
12months |
Punching Station: |
12pcs |
Diameter Of Cylinder: |
80mm |
Max. Punching Thrust: |
8000KG Or 16000KG |

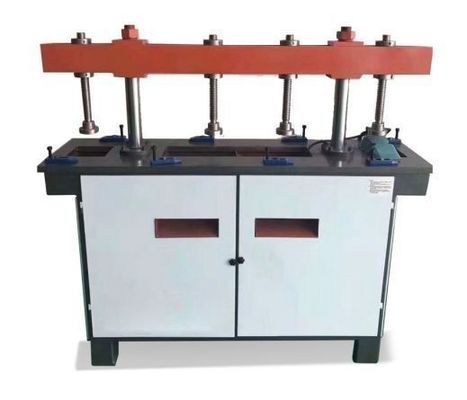

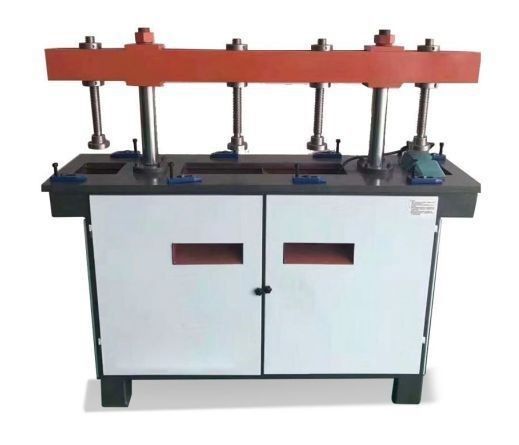

A-373 Double Column Hydraulic Punching Machine
Machine features:
It is used for the aluminum and thermal material hole punching with moulds. Adopts double column guiding helps to punching stably, efficiently. Special design for the moulds holder helps to change the moulds easily and safely.
| Machine Parameters | ||
|
Model |
A-373 Single cylinder double column |
A-373D Double cylinders double column |
| Punching station | 12pcs | 12pcs |
| Max. height of products | 280mm | 280mm |
| Min. height of products | 140mm | 140mm |
| Max. punching feeding | 60mm | 60mm |
| Diameter of cylinder | 80mm | 80mm |
| Volume of oil tank | 40L | 55L |
| Motor power | 2.2kW | 5.5kW |
| Max. punching thrust | 8000Kg | 16000Kg |
| Machine voltage | 380VAC/50HZ | 380VAC/50HZ |
| Machine dimension (LXWXH) | 1550X830X1140mm | 1550X830X1140mm |
| Machine weight | 1000kg | 1200kg |
