Toilet Roll / Kitchen Towel Automatic Production Line Jrt Maxi Rewinding Machinery

Machine features:
1. Scope: Toilet roll / maxi roll / kitchen towel / JRT / Bed roll / Auto cut
2. Perforator is controlled by individual inverter, it guarantees the accuracy of the perforation sheet length during long-turn production.
3. Winding log diameter Φ80-300mm
4. Optional unit: Edge-embossing,Embossing unit, Lamination unit
5.Out-standing performance of lamination station: No glue leakage out, less vibration, equal glue application, ply bonding well

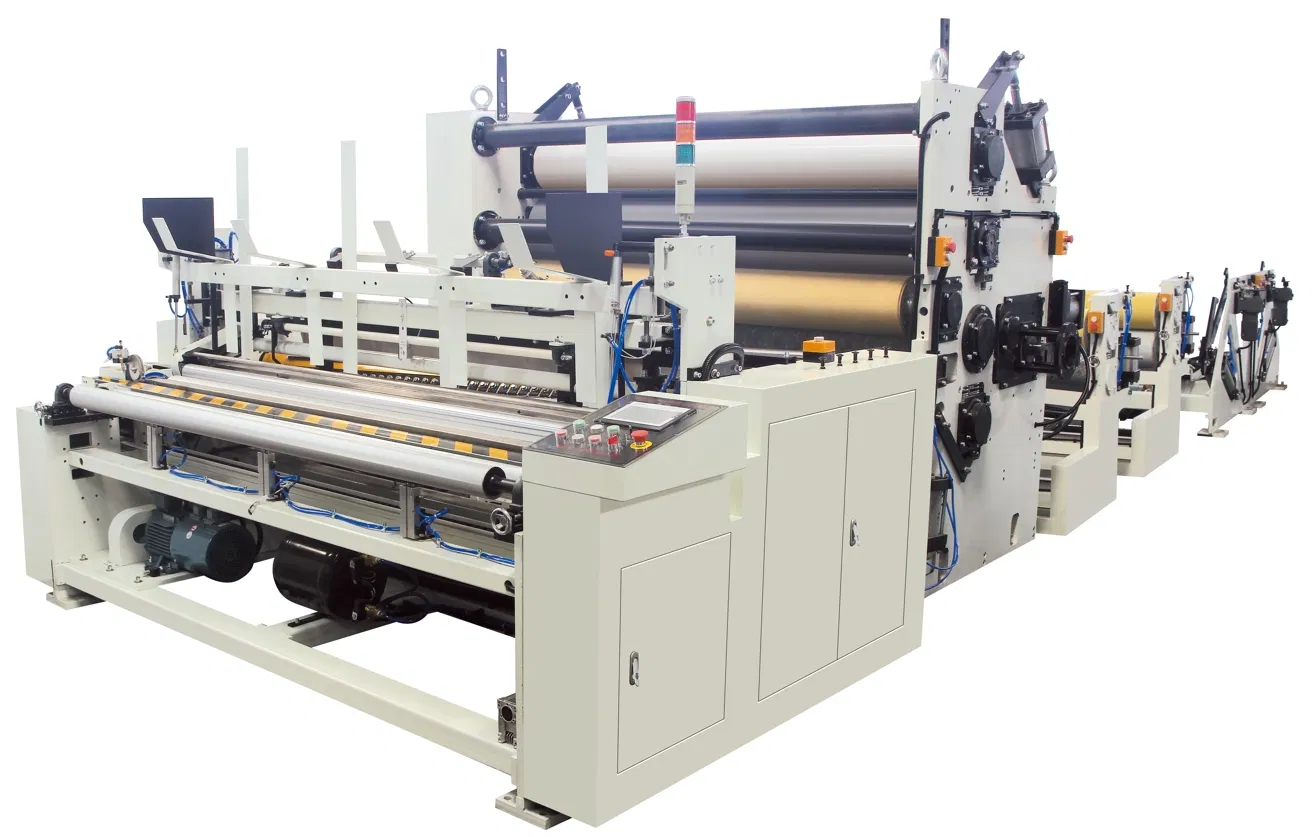

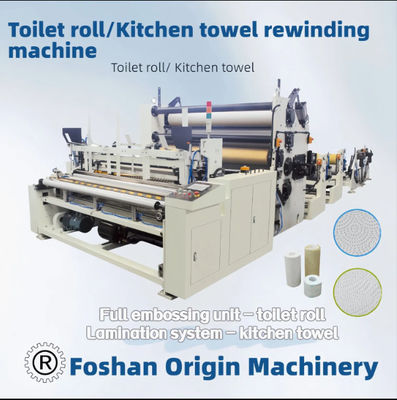

Automatic rewinding machine

Rewinding log diameter:90-300mm
Jumbo roll width: 2850
Perforation unit: 4 upper sprial blades and one lower blade
Driving system: Individual motor driving

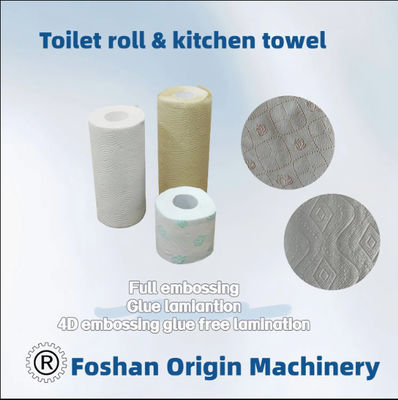

Embossing options:
- Edge embssing
-Full embossing (steel to rubber/ felt / steel ...)
- Glue lamination
- 4D embossing glue free lamination

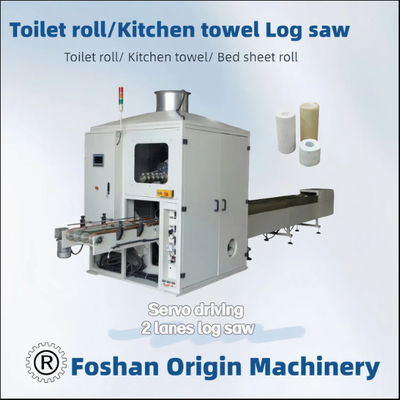

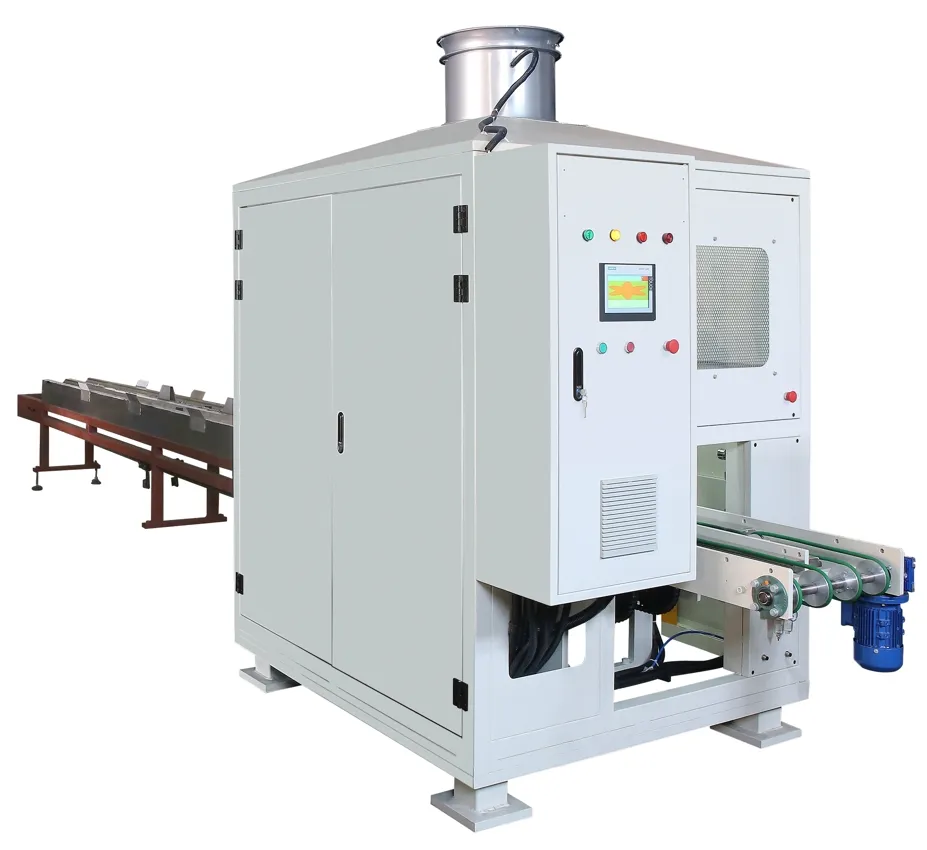

Toilet roll/ Kitchen towel log saw
Servo driving system
2 lanes cutting
Cutting roll diameter 90-130mm
Designed speed: 0-200cuts/min

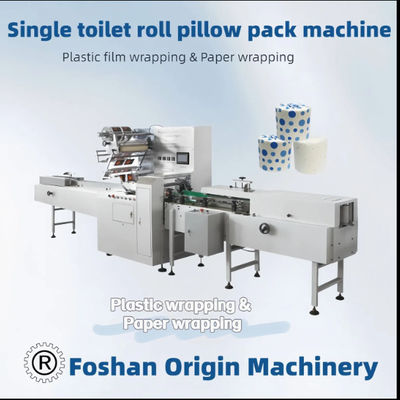

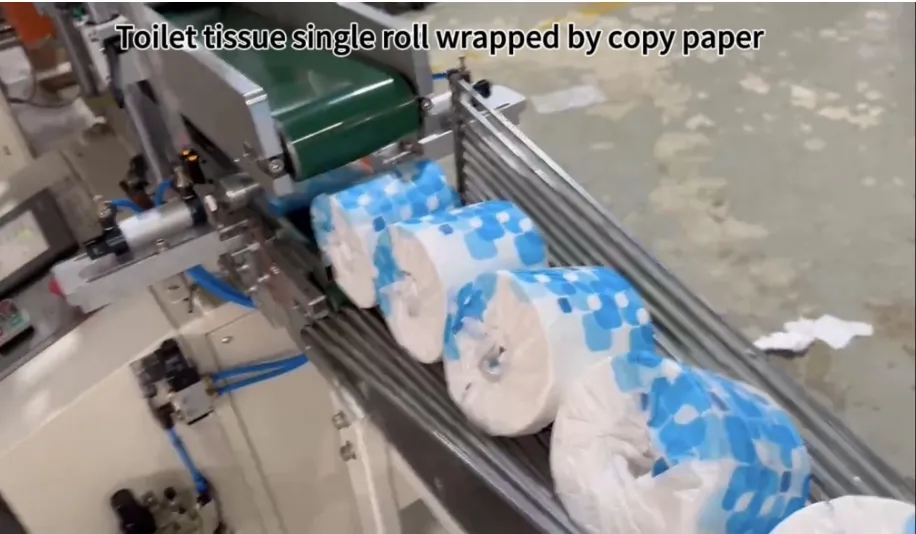

Single roll wrapping machine
Scope: single tiolet roll wrapping
Wrapping material : plastic film or copy paper
Wrapping function: pillow pack

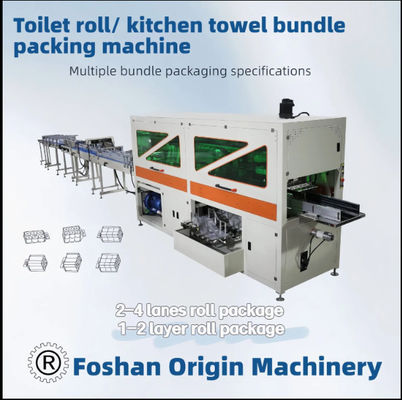

Full autoamtic multiple bundle packing
Bundle package:6-48 toilet rolls/ package
Packing specifications: 2-4 lanes * 1-2 layers

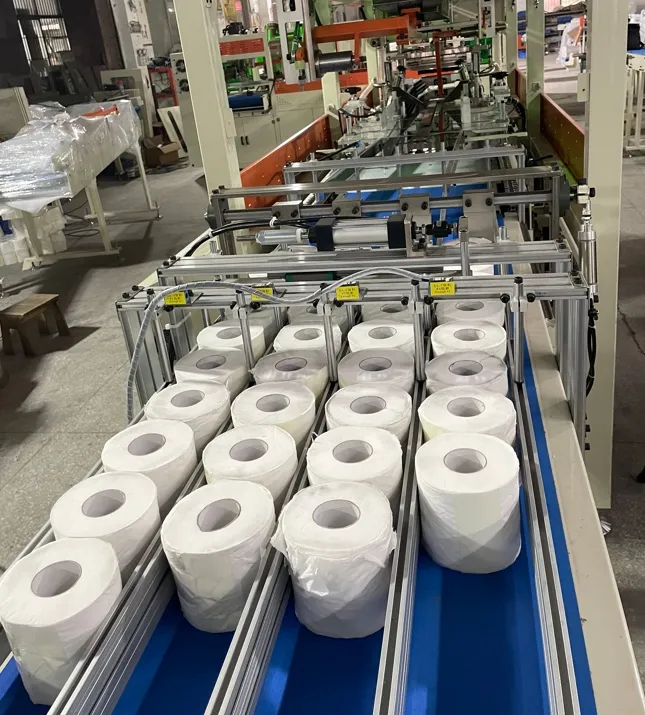

Tissue roll feeding: automatic arranging and counting
Packing material: Per-made PE/CPP bags
