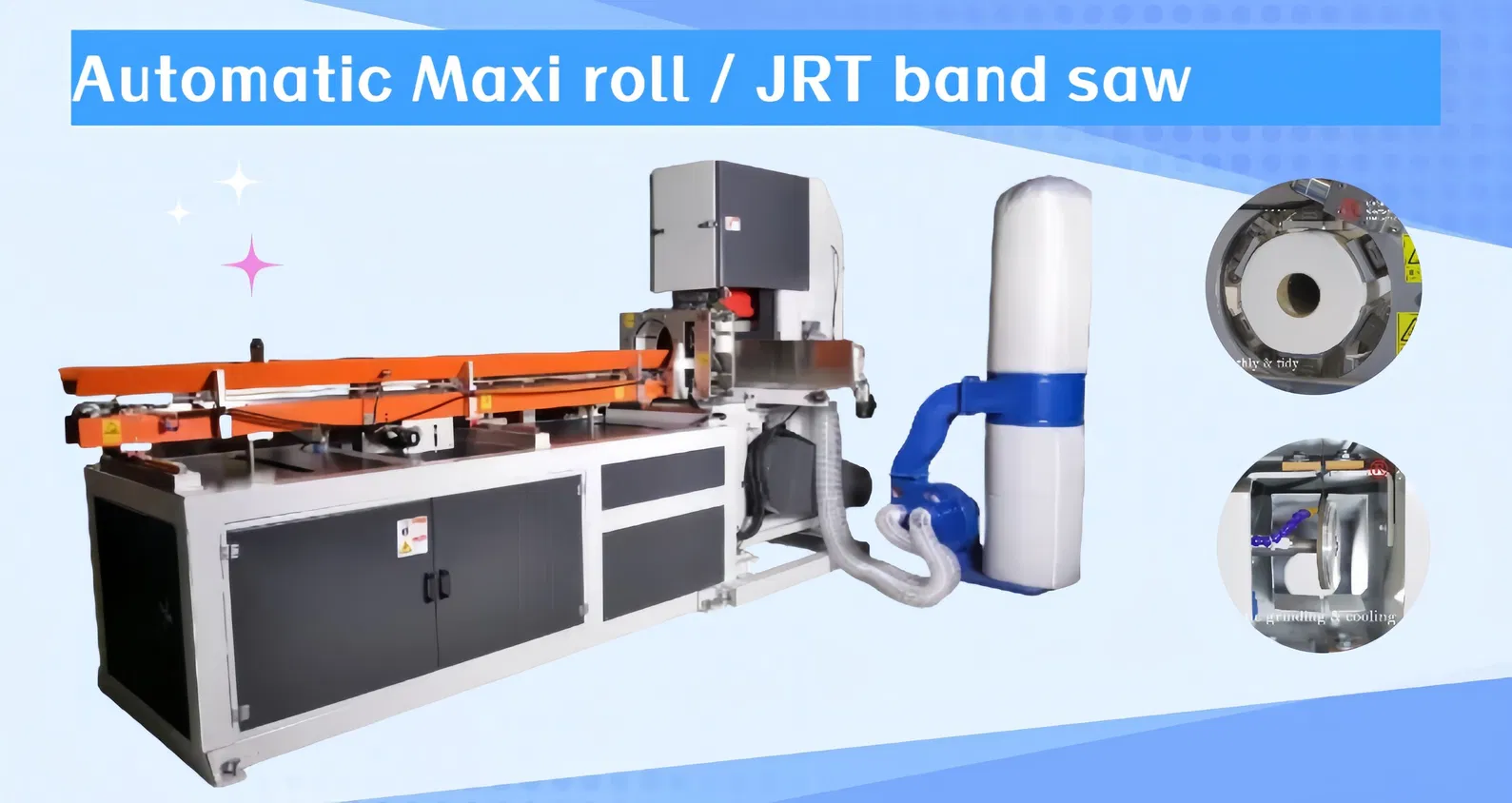

Maxi Roll Band Saw JRT /HRT Industrial Roll Cutting Machine Cutter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cutting Diameter: | 150-300mm | Cutting Type: | Tissue Paper/JRT /HRT |
|---|---|---|---|
| Voltage: | 380V ,50HZ | Cutting Length: | 90-300mm (Customized) |
| Speed: | 40-60 Cuts/min | Warranty: | One Year |
| Highlight: | JRT Roll Cutting Machine Cutter,Industrial Roll Cutting Machine Cutter,HRT Roll Cutting Machine Cutter |
||
Product Description
Machine features:
- Equipped with flexible clamping system, it can work with different cutting log diameters without replacing the clamper . Clamping log diameter can be set on touch panel directly.
- Cutting size: Φ180-280mm, width 90-300mm (other size to be specified)
- Cutting operation is fully automatic , increase the safety in production.
- Saw blade tension is controlled by hydraulic system . The compact rolls which carry hard paper cores are cut easily.

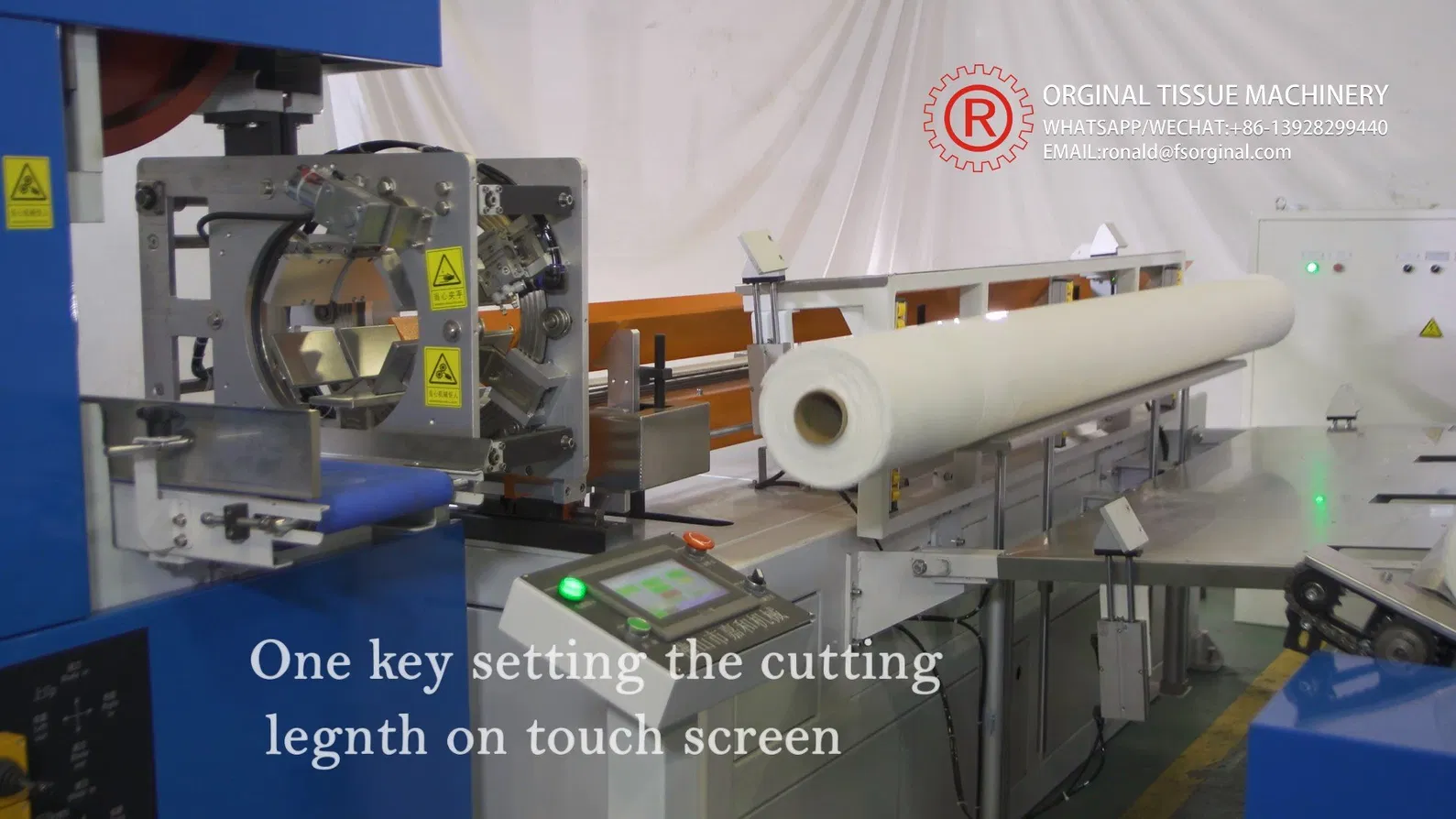

It is easy to operate this band saw by setting some simple cutting parameters on touch panel.

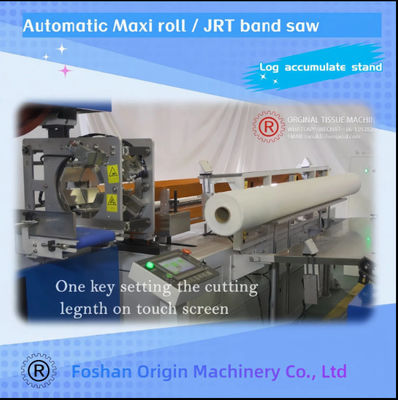

Tissue log transfer stand
Connecting the band saw with the rewinder. The tissue log will be transfer to the band saw cutting unit automtically.
Connecting the band saw with the rewinder. The tissue log will be transfer to the band saw cutting unit automtically.

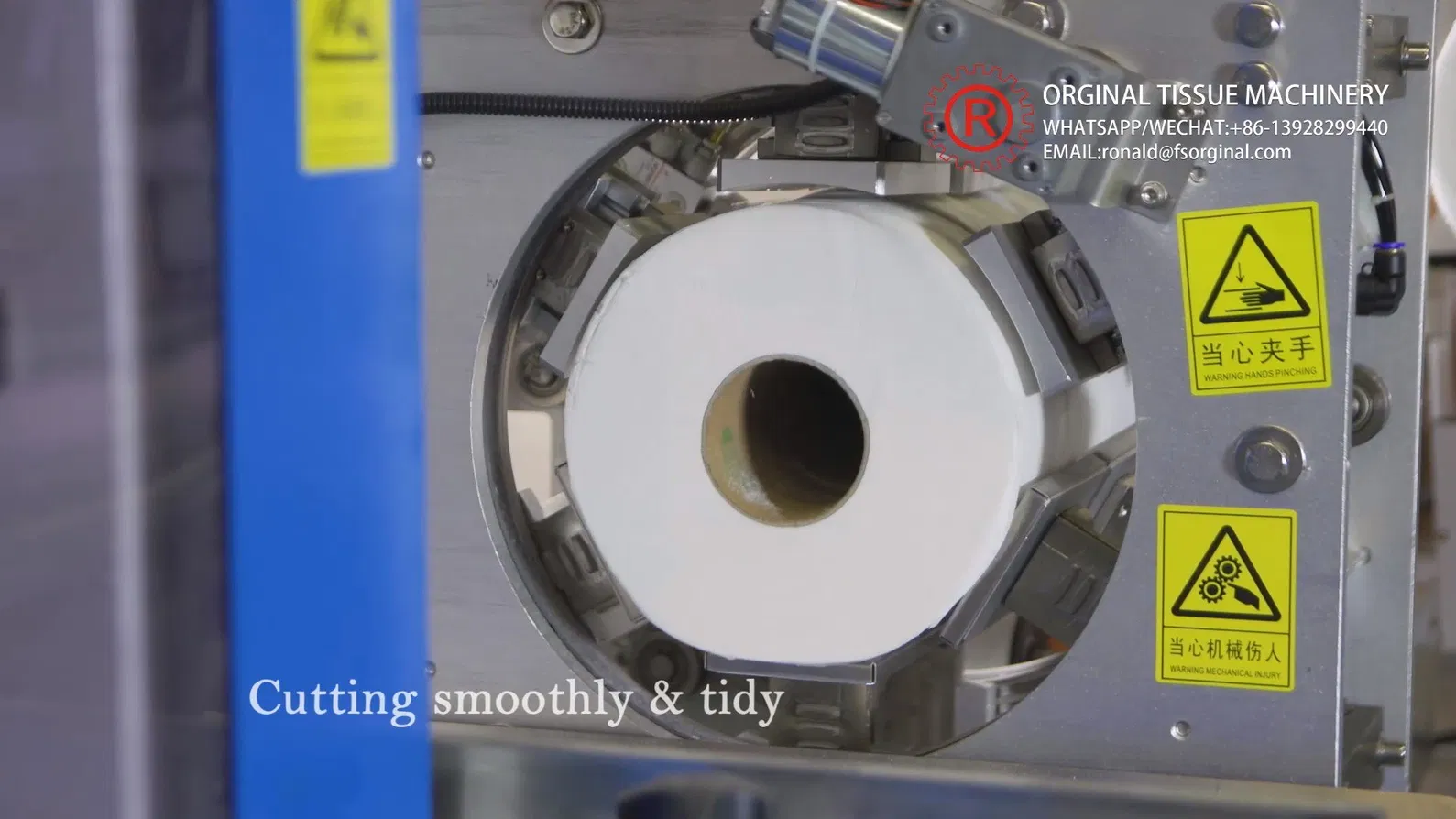

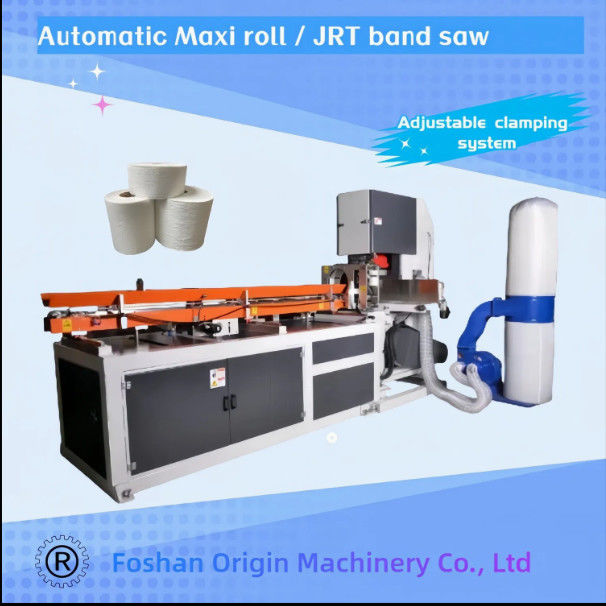

Flexible clamping system
Cutting roll diameter from 200-300mm is adjustable. The clamping system is controlled by HMI.
Cutting roll diameter from 200-300mm is adjustable. The clamping system is controlled by HMI.

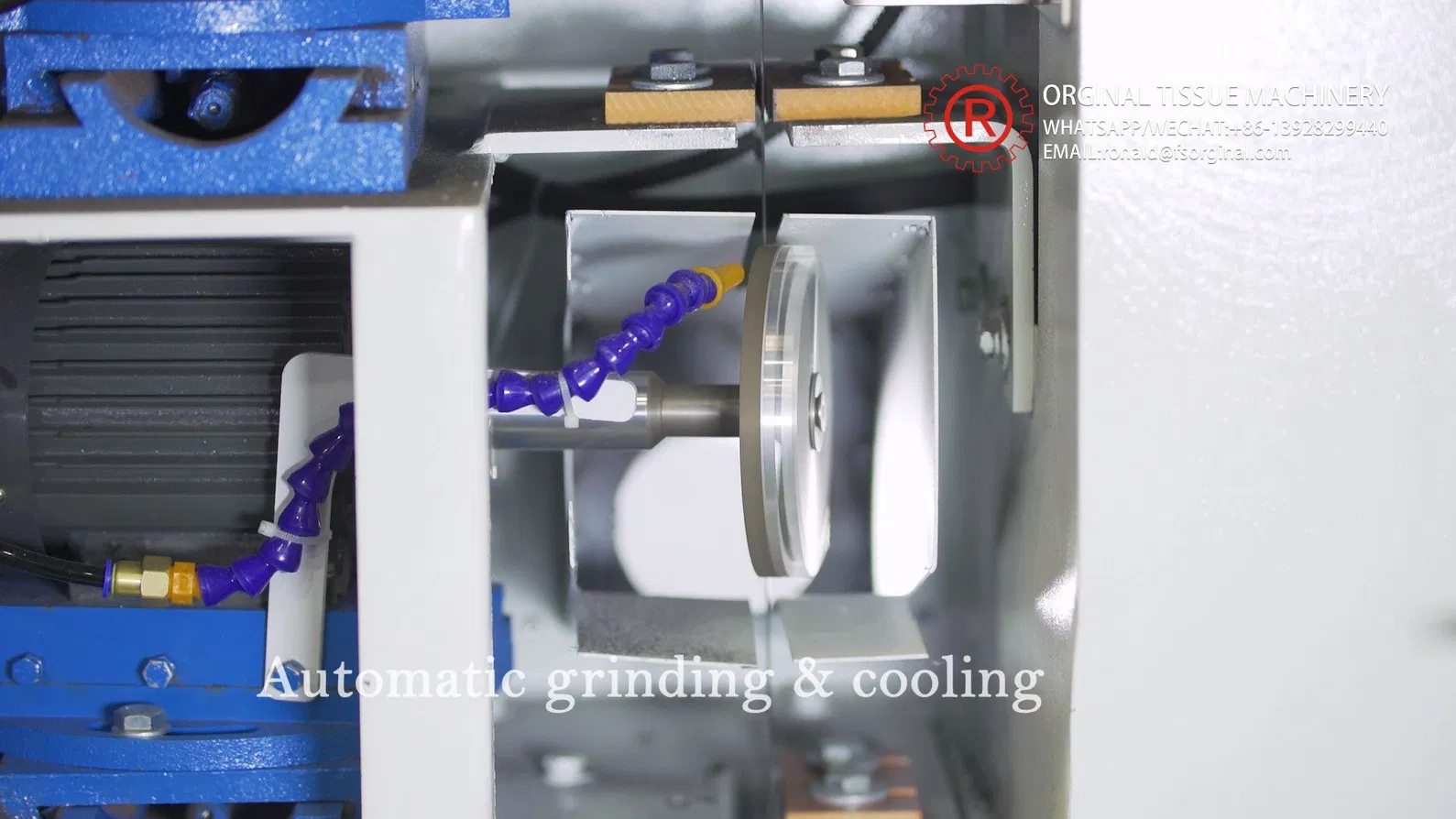

Automatic grinding system
The saw blade grinding is automatic.
The saw blade grinding is automatic.
| Machine Model | DJ-PZ 3000 |
| Parent roll dimension: | width ≤ 3000mm Ø150-300 mm |
| Slitting length | 90-300mm |
| Adjustable clamping system | Ø150-300 mm, adjustable diameter range Ø150-300 mm |
| Slitting lane | One lane |
| Running speed | 40cuts/min |
| Feeding Method | Servo motor drives the pushers |
| Cutting Method | cut by saw blade |
| Trimming | 20mm---50mm |
| Cutting Accuracy | Length tolerance±1mm |
| Blade Grinding System | Automatic blade grinding |
