JRT HRT Toilet Roll Rewinding Machine Semi Automatic Simen PLC
JRT HRT Toilet Roll Rewinding Machine Semi Automatic Simen PLC
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: ORGINAL
Model Number: DM-FJ1575
High Light:

JRT Toilet Roll Rewinding Machine


Semi Automatic Toilet Roll Rewinding Machine


PLC Toilet Paper Rewinding Machine

Payment & Shipping Terms
Packaging Details: wooden case,20feet container can load 1set
Delivery Time: 30days
Supply Ability: 3SETS PER MONTH
Working Speed: 200m/min
Good Quality: SIEMENS PLC
Embossing: Steel To Rubber Or Steel To Steel(For Option)
Raw Material: Virgin Pulp
Voltage: 220V50HZ/380V50HZ
Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Type: Toilet Tissue,Kitchen Paoer Roll
Product Description

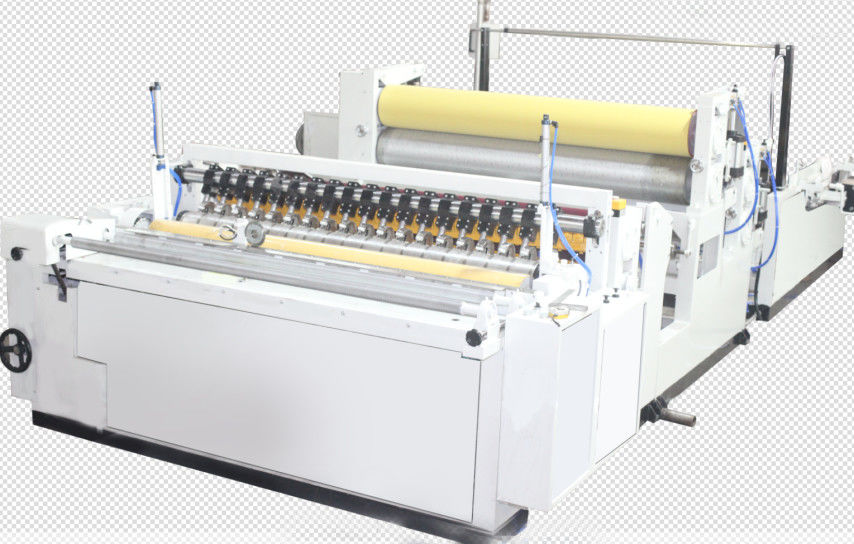

Toilet Roll/JRT /HRT Rewinding Machine Semi Automatic one by using SIMEN PLC


JRT/HRT Big Roll Toilet Tissue Rewinding Machine using SIMEN System


DM-FJ1575   High speed toilet paper rewinding machine

MODLE 1575 1760 2200 2500 2800 2900 3000
Max.Jumbo roll width(mm) 1750 2000 2150 2400 2750 2850 2950
Finished product diameter(mm) Ф60-150
Finished product core inner diameter(mm) Ф32-50
Jumbo roll diameter(mm) ≤Ф1200(other size should be ordered)
Jumbo roll core inner diameter(mm) Ф76.2(other size should be ordered)
Perforating size(mm) 110mm(other size should be ordered,4PCS spiral perforating blade)
Machine speed 220m/min
Parameter setting SIEMENS touch screen
backstand 1-4sets(should be ordered)
Air pressure 0.8Mpa(user supply)
Power 13.5-35Kw,380V,50Hz(base on the model)
Embossing unit Single,double embossing/steel to steel/steel to rubber/steel to paper(should be ordered)
backstand 1-4 sets(should be ordered)
Transmission Separating motor driving/timming belt transmission/chain and chain wheel transmission
Core or coreless unit Should be ordered
Edge embossing unit Air bag type(should be ordered)
Calendering unit Steel to steel/steel to rubber(should be ordered)
